1200V Modero Video Touch Panels
Protected Setup Navigation Buttons
The Protected Setup Navigation Buttons (FIG. 91) appear on the left of the panel screen when the
Protected Setup page is currently active.
Battery Base Page Elements (Cont.)
Battery Power Brightness
Limit:
The DISABLE/DISABLED button acts as a power save feature with two
available choices:
• Disable - activates the brightness limit set on the Modero panel and is used
to conserve battery power. Activating this feature causes the panel to
function at 80% of full brightness and overrides the Panel Brightness value
set on the Setup page. This extends the battery usage time.
• Disabled - (illuminated when selected) deactivates this power save feature
and makes the panel use the specified Panel Brightness level set on the
Setup page.
The term "quality" (in the context of a battery), refers to the current capacity relative to
the batteries’ rated capacity. For example, after constant use, a battery may be
operating at 75% of its rated capacity even though it might be fully charged. In this
case, the battery could be incorrectly reporting its’ information back to the battery
base and then consequently relating this information back to the Battery Base page.
A battery can be recalibrated using an optional NXT-CHG (battery charger).

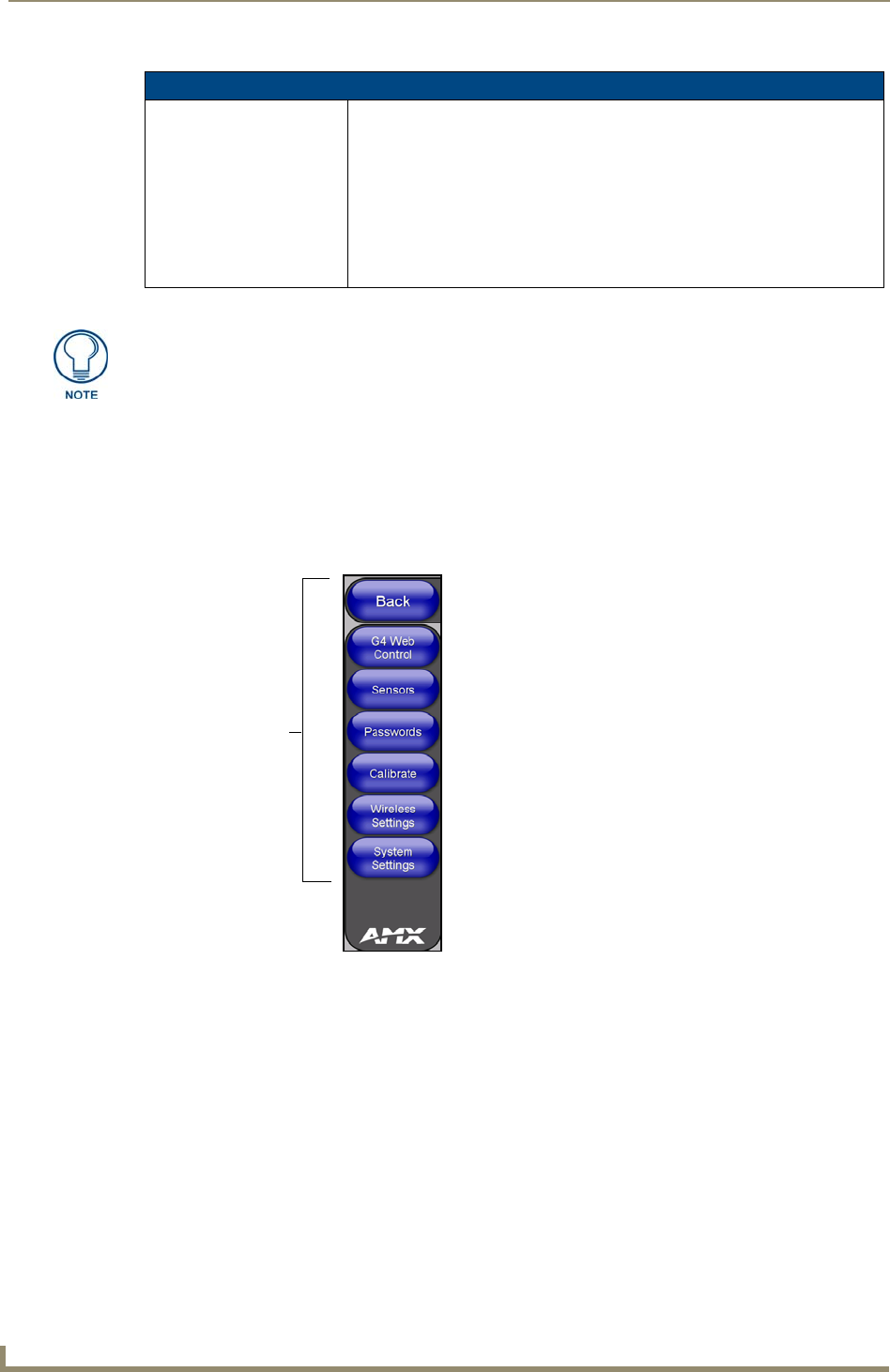

FIG. 91 Protected Setup Navigation Buttons
Modero Protected
Setup Navigation
Buttons
