Introduction
5
1200V Modero Video Touch Panels
1200V-Series Modero Connectors

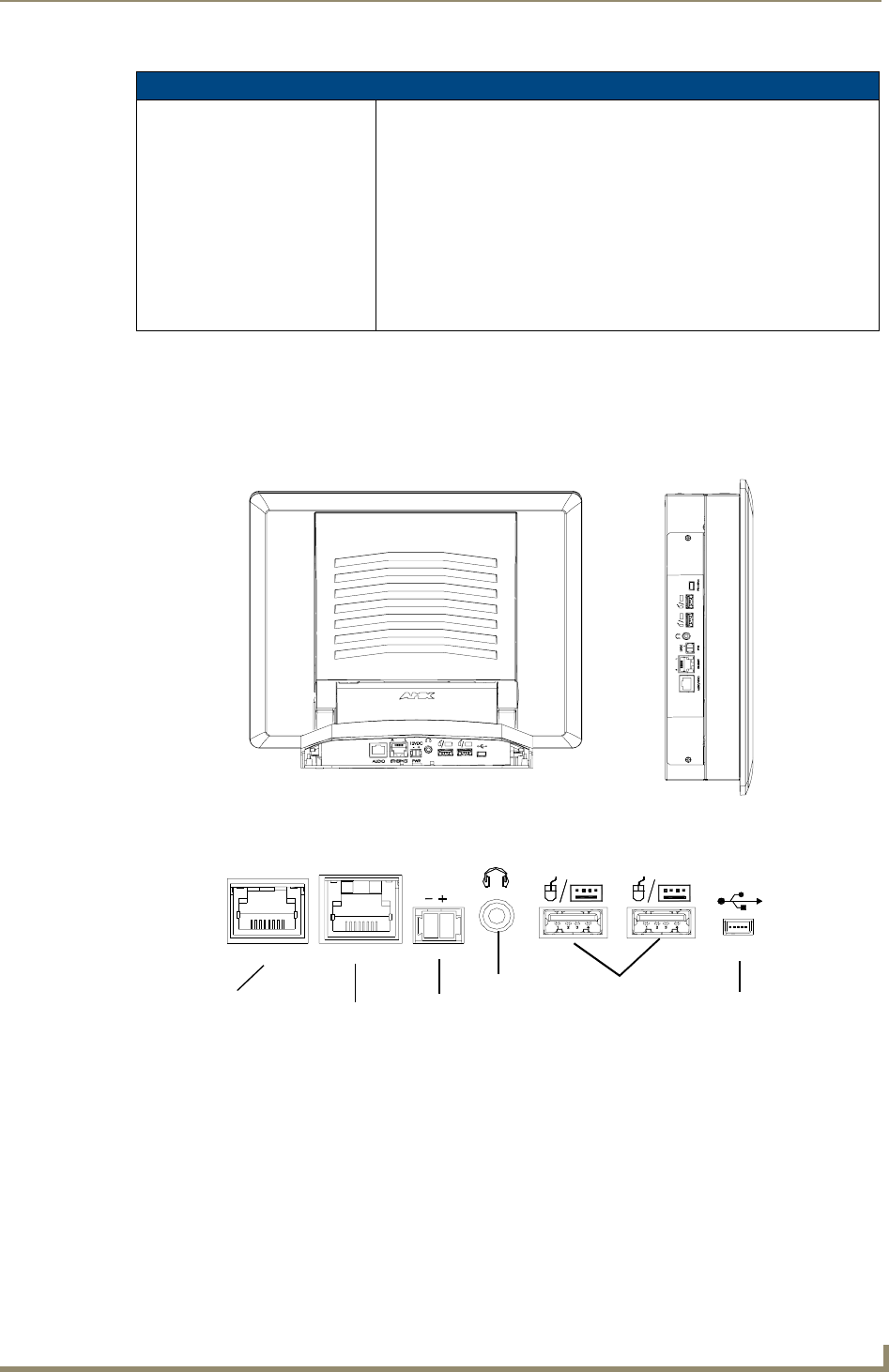

FIG. 2 shows the connectors on the 1200V Modero Video panels. The Audio/Video RJ-45 connector
provides differential audio/video signals between the touch panel and the NXA-AVB/ETHERNET.
This connector routes Composite video, Stereo (left/right) audio, and microphone audio.
Cleaning the Touch Overlay
You should clean the touch screen overlay after each day’s use. Always use clean cotton cloths and a
spray bottle containing water.
1200V Panel Specifications (Cont.)
Other AMX Equipment (Cont.): • NXA-RK12 (FG2904-50)
- RackMount kit for 12" Wall Mount touch panels (NXD models only).
• NXT-BP (FG2250-10)
- Battery pack for Table Top panels. Provides 4 hours of continual
operation (NXT models only)
• NXT-CHG (FG2250-50)
- Battery charger for NXT-BP batteries. Charges batteries in 8 hours.
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CFTPV256M - 256 MB V/VG compact flash card (FG2116-43)
NXA-CFTPV512M - 512 MB V/VG compact flash card (FG2116-44)
NXA-CFTPV1G - 1 GB V/VG compact flash card (FG2116-45)
FIG. 2
Connector layout on sample 1200V Video Touch Panels
ETHERNETAUDIO/VIDEO
A
PWR
12VDC
L
PROGRAM
Audio-Video from
NXT-1200V - connectors located
on rear panel of the base
NXD-1200V - connectors located
on left side panel
NXA-AVB/ETHERNET
(CAT5)
Stereo
Ethernet
Power
Keyboard/Mouse
USB connectors (2)
Mini-USB
(Program Port)
(CAT5)
Output
