15
1200V Modero Video Touch Panels
2. Grasp the Black RJ-45 Audio/Video cable being connected to the panel. This end of the cable is
longer than the opposing end which connects to the breakout box (6 inches vs 3 inches). Refer to
FIG. 14 for more detailed information.
3. Insert the panel-end of the Black RJ-45 Audio/Video cable into the groove along the inside of the
enclosure.
4. Snap the enclosure shut with the cable inside, and you’re done.
5. Repeat this process again only when installing an additional CAT5 Suppression Ferrite
(model specific).
NXA-CFTP Compact Flash (FG2116-2x)
Every Modero panel is shipped with two factory default modules: an EXM Memory Module and a
Compact Flash card. These panels are shipped with a 256 memory module which is not
upgradeable.
The default 128 MB Compact Flash card is factory programmed with specific panel firmware and is the
only upgradeable memory component. This component can be ordered from AMX in several different
upgrade sizes (as listed in the following table):
Upgrading the internal components involves opening the panel enclosure/outer housing to access the
internal circuit board, removing the existing part, and replacing them with the upgrade components, as
described in the following sections.
The CAT5 Suppression Ferrites MUST be installed onto the cable connected to the
Modero’s Audio/Video RJ-45 connector (just behind the connector).

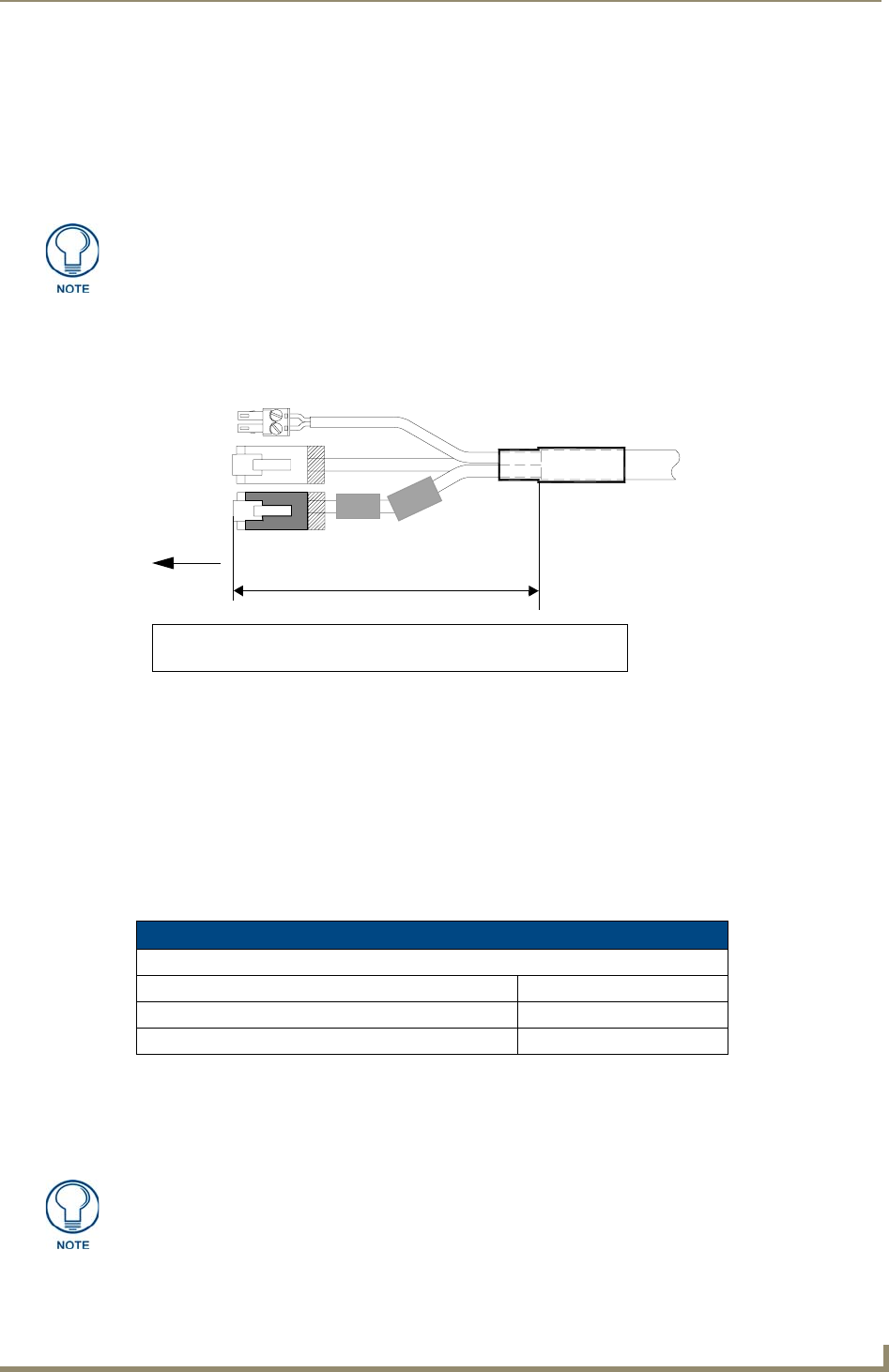

FIG. 14 Ferrite connector location on Audio/Video RJ-45 cable
Optional Compact Flash Memory Upgrades
Compact Flash:
NXA-CFTP256M - 256 MB Compact Flash card (FG2116-23)
NXA-CFTP512M - 512 MB Compact Flash card (FG2116-24)
NXA-CFTP1G - 1 GB Compact Flash card (FG2116-25)
1
3
2
6 inches
To Touch
Connector
3
- used for PowerConnector
1
- used for Audio/Video (Black)
Connector
2
- used for Ethernet (White)
Panel
Ferrite
F
e
r
r
i
t
e
It is recommended that any upgrade of internal equipment be done simultaneously in
order to reduce the risk of damage to internal components.
