1200V Modero Video Touch Panels

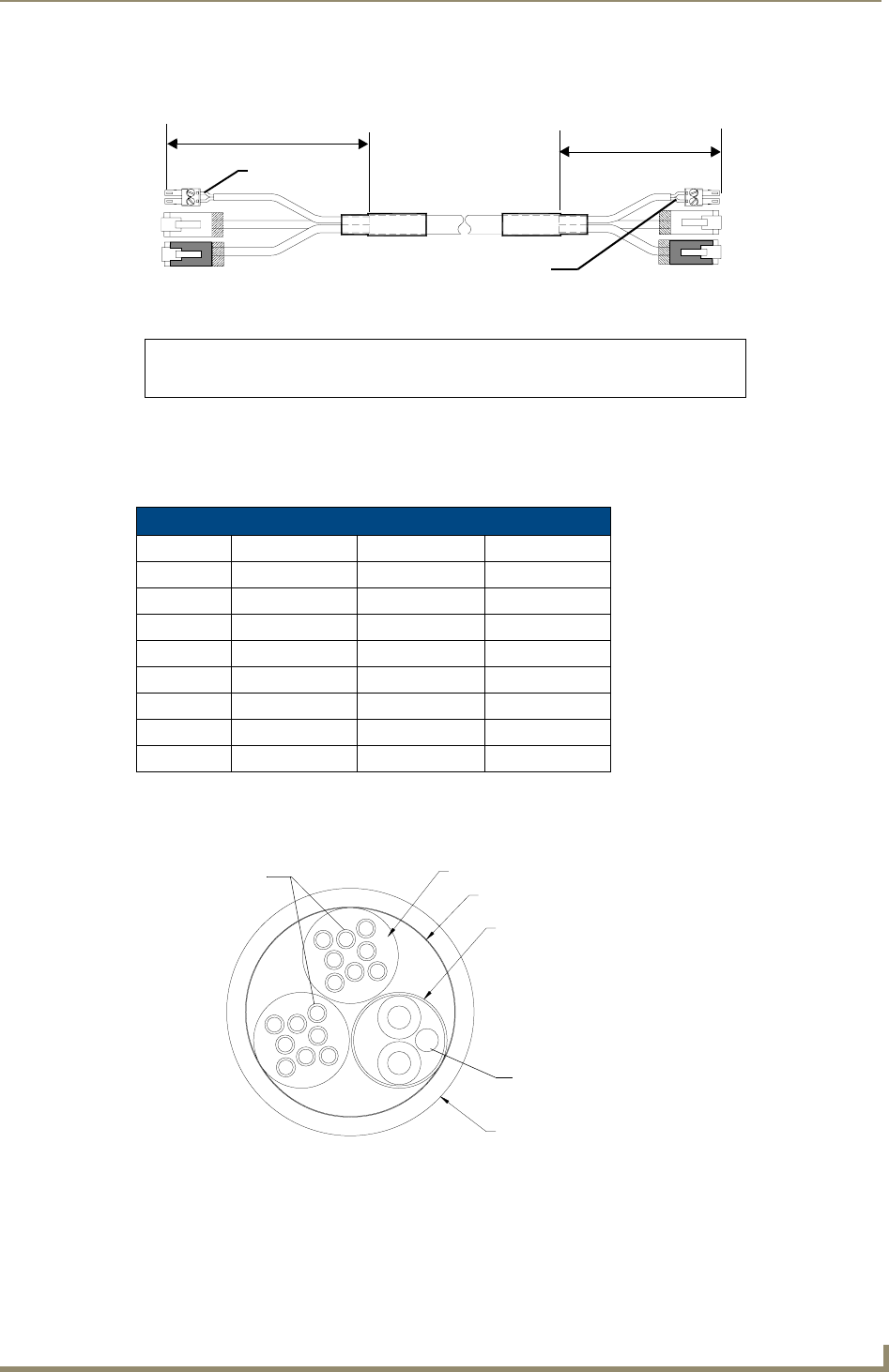

FIG. 10 shows the top and cross-section views of the Table Top cable.
The following table provides the wiring information (color coding) for each of the three available cable
connectors on each side of the Modero Table Top Cable.
The following figures provide a cross-section view (FIG. 11) and a description (FIG. 12) of the Modero
Table Top Cable:
FIG. 10 Modero Table Top cable (top and cross-section views)
Modero Table Top Cable Wiring Table
Wire Connector 1 Connector 2 Connector 3
1 White/Orange White/Orange Red
2 Orange/White Orange/White Black
3 White/Green White/Green -
4 Blue/White Blue/White -
5 White/Blue White/Blue -
6 Green/White Green/White -
7 White/Brown White/Brown -
8 Brown/White Brown/White -
FIG. 11
Table Top Cable - cross-section view
Red
Red
1
3
2
1
3
2
6 inches
3 inches
To Touch Panel To Breakout Box
Connector
3
- used for Power
Connector
1
- used for Audio/Video (Black)
Connector
2
- used for Ethernet (White)
Element #1
Binder
Element #2
Jacket
Connector #1 & 2
Connector #3
