Installation Procedures: NXD-1200V Panels
40
1200V Modero Video Touch Panels
Installing the NXD into drywall using Expansion Clips
Expansion clips are mounted through the four oval holes located at the top and bottom of the panel. As
the screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a
"grip" on the wall by either pressing onto the wall or by securing the drywall between the housing and
the drywall clip.
The most important thing to remember when mounting the NXD is that the outer frame (Mounting Tabs)
must be installed flush against the mounting surface.
1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout
process.
2. Cut out the surface for the 12-inch Wall Mount using the dimensions shown in FIG. 38. Be sure to
cut out the four notches along the top and bottom areas to accommodate the four drywall expansion
clips (provided).
3. Remove the magnetic faceplate/bezel (A in FIG. 39) from the main NXD unit (B in FIG. 39) by
gripping the faceplate and pulling with gentle outward force.

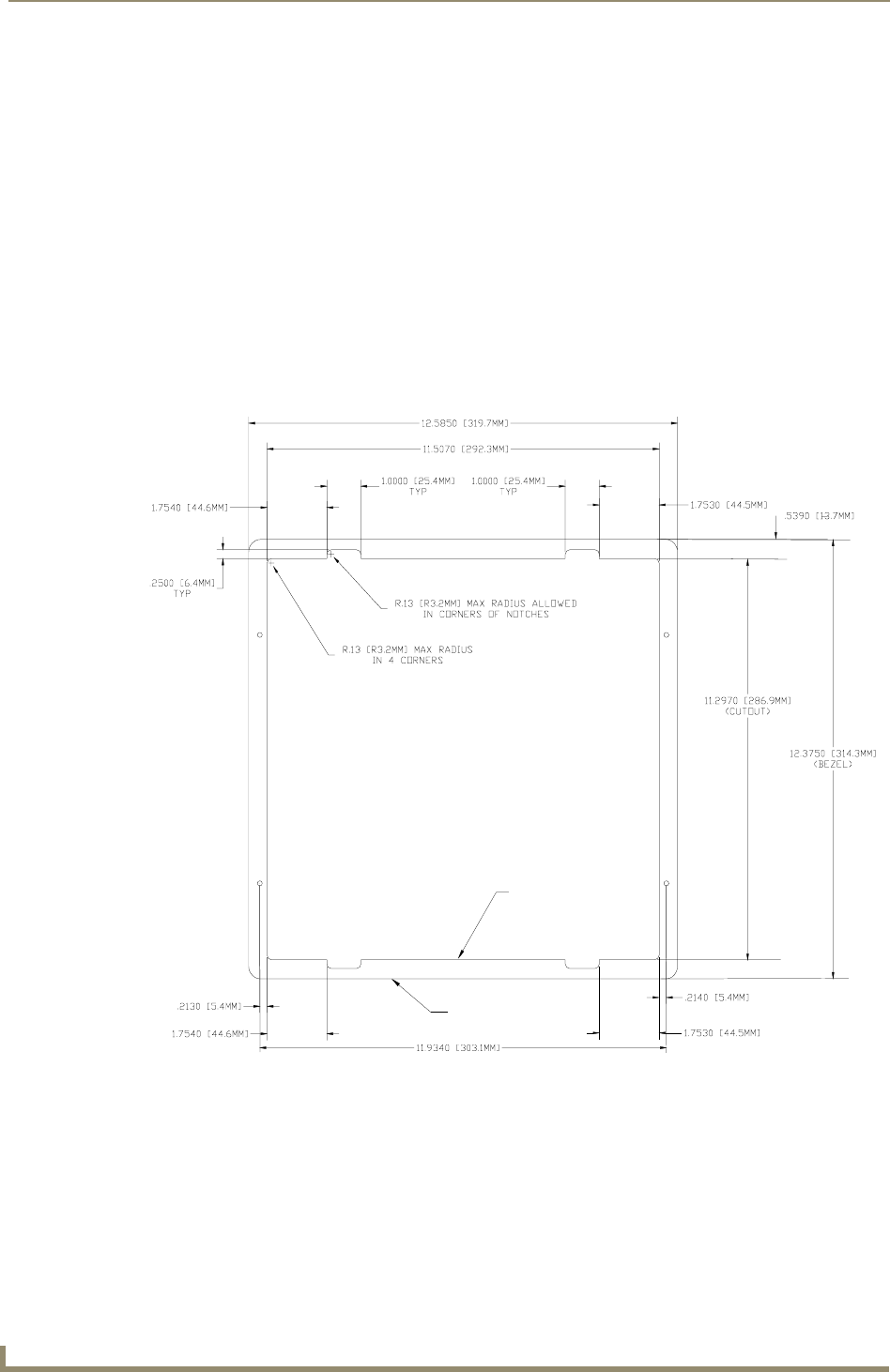

FIG. 38 NXD-1200V 12-inch Wall Mount panel dimensions using expansion clips
FRONT BEZEL
CUTOUT
