DS-DWZZH-03 and DS-DWZZH-05 UltraSCSI hubs may be housed
in the same storage shelf with disk drives. Table 33 provides the
supported configurations.

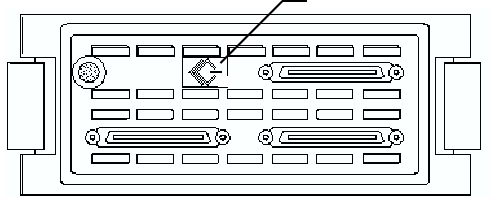

Figure 32 shows a front view of the DS-DWZZH-03 UltraSCSI hub.
Figure 32: DS-DWZZH-03 Front View
Differential symbol
ZK-1412U-AI
The differential symbol (and the lack of a single-ended symbol) indicates
that all three connectors are differential.
3.6.1.2 DS-DWZZH-05 Description
The DS-DWZZH-05:
Is a 5.25-inch StorageWorks building block (SBB)
Has five Very High Density Cable Interconnect (VHDCI) differential
SCSI bus connectors
Uses SCSI ID 7 whether or not fair arbitration mode is enabled.
Therefore, you cannot use SCSI ID 7 on the member systemsSCSI bus
adapter.
The following section describes how to prepare the DS-DWZZH-05 UltraSCSI
hub for use on a shared SCSI bus in more detail.
3.6.1.2.1 DS-DWZZH-05 Configuration Guidelines
The DS-DWZZH-05 UltraSCSI hub can be installed in:
A StorageWorks UltraSCSI BA356 shelf (which has the required
180-watt power supply).
A non-UltraSCSI BA356 that has been upgraded to the 180-watt power
supply with the DS-BA35X-HH option.
