120 Installing System Components
Figure 3-19. Installing or Removing an iDRAC6 Express Card (Optional)
6
Close the system. See "Closing the System" on page 86.
7
Place the system upright on a flat, stable surface.
8
Reattach any peripherals and connect the system to an electrical outlet.
9
Turn on the system and attached peripherals.
Removing an iDRAC6 Express Card (Optional)
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1
Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
2
Open the system. See "Opening the System" on page 85.

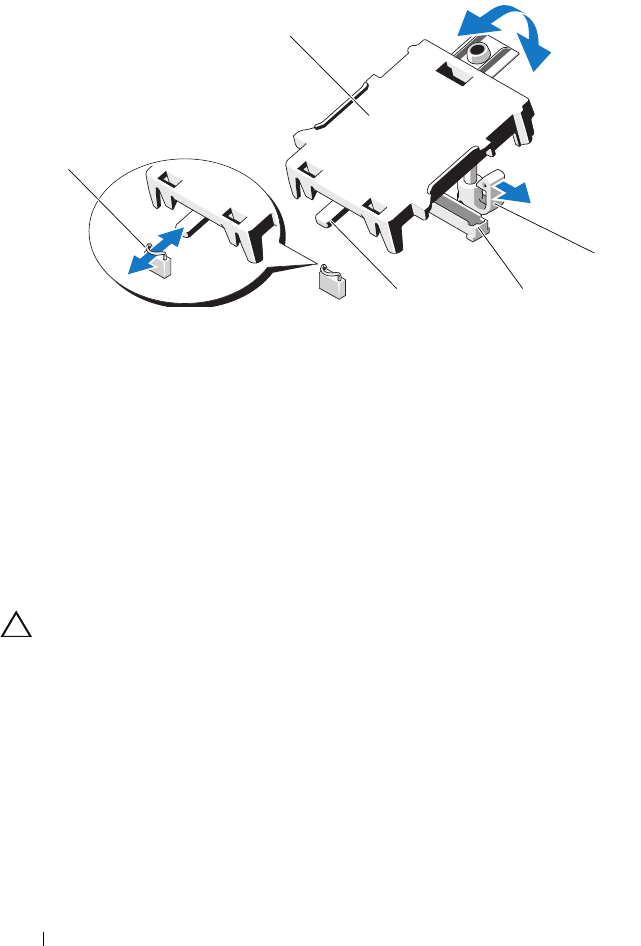

1 clip 2 iDRAC6 Express card
3 retention standoff tab clip 4 iDRAC6 Express card connector
5 notch
2
3
4
5
1
