Printronix P3000 Series Printer User Manual



649Programming
Line Spacing 8 or 10.3 lpi (One Line Only)
ASCII Hex Decimal
PSeries ACK 06 06
SFCC f
SFCC 66
SFCC 102
Serial N/A N/A N/A
Purpose Selects line spacing of 1/8 or 7/72 inch for the current line only.
Comment The
default
line spacing is reselected automatically after one line. Select line spac
-
ing either by the control panel 6/8 LPI switch or by line spacing control codes. The
control
code setting overrides the setting on the display
.
8
and 10.3 lpi spacing for one line applies only to PSeries programming compati
-
bility.
If
the alternate line spacing selected from the control panel is 8 lpi, the ACK control
code will set the line spacing to 8 lpi. If 10.3 lpi was selected from the control panel,
the ACK control code will set line spacing to 10.3 lpi (7/72 inch).
In
Serial
Matrix printer protocol, you can use this line spacing command for a single
line
with ESC J (Line Feed n/216Inch), where n=27 for 8 lpi, or n= 21 for 10.3 lpi,
and Line Feed = Newline.
In
Serial Matrix compatible control code ESC 0 and PSeries SFCC 0 can be used
for
continuous 1/8inch line spacing.

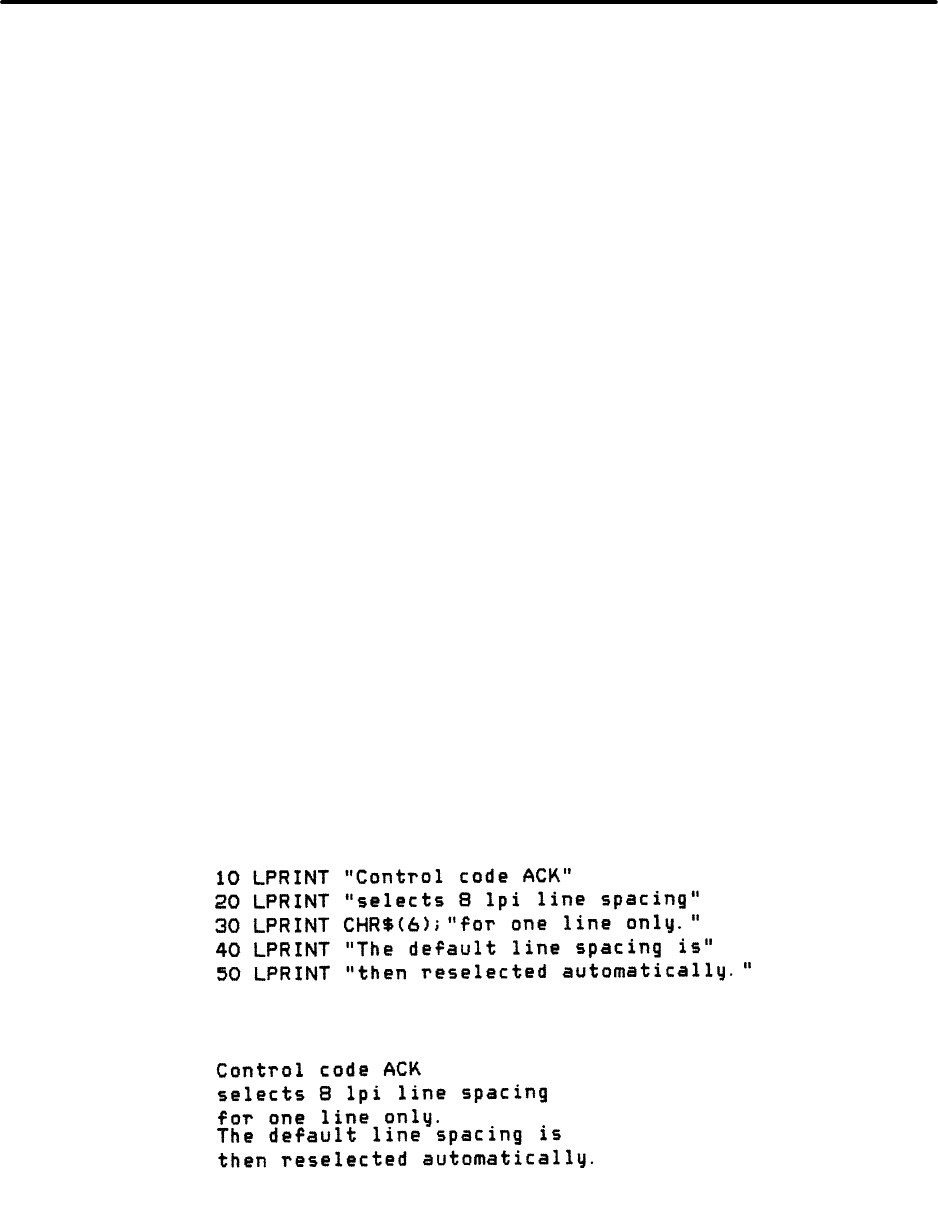

Example The following example illustrates printing a single line of text at 8 lpi.
