7–Removal and Replacement
Power and Cooling Modules
ISR651101-00 J 7-13
2. Insert the replacement PCM into the iSR6200 chassis. As shown in
Figure 7-10, push the PCM straight into the chassis (1), and then make sure
the PCM is properly seated into the chassis mid-plane by pushing the lever
up and locking the latch in the up position (2). The PCM fans turn on and the
LED should show an amber color.

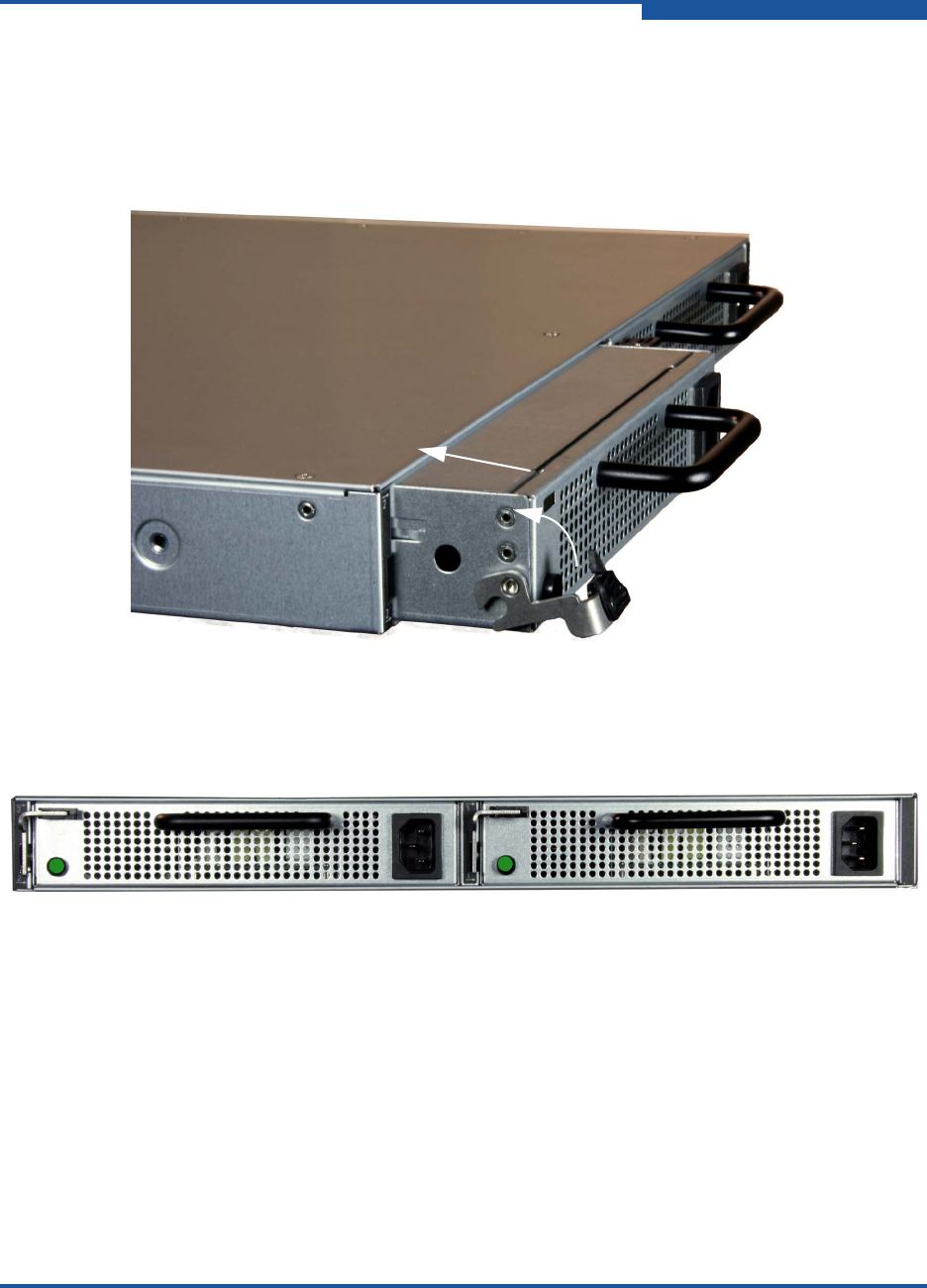

Figure 7-12. Inserting the Replacement PCM
3. Connect the power cable to the newly inserted PCM. Its status LED color
should change from amber to green within five seconds (Figure 7-13).
Figure 7-13. Back Side of Two PCMs, Both With Good Status Indicators
4. Verify that the airflow through both PCMs is in the same direction.
(1)
(2)
