1 Hardware Overview
1.5 TFT Color Display
The TFT color display consists of 15.0-inch XGA/SXGA+ LCD module and FL inverter
board.
1.5.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 16M colors with 1,024 x 768 or 1,400x 1,050 resolution. The
NVIDIA-made NV43 can control both internal and external XGA/SXGA+ support displays
simultaneously.
Figure 1-6 shows a view of the LCD module and Table 1-4 lists the specifications.

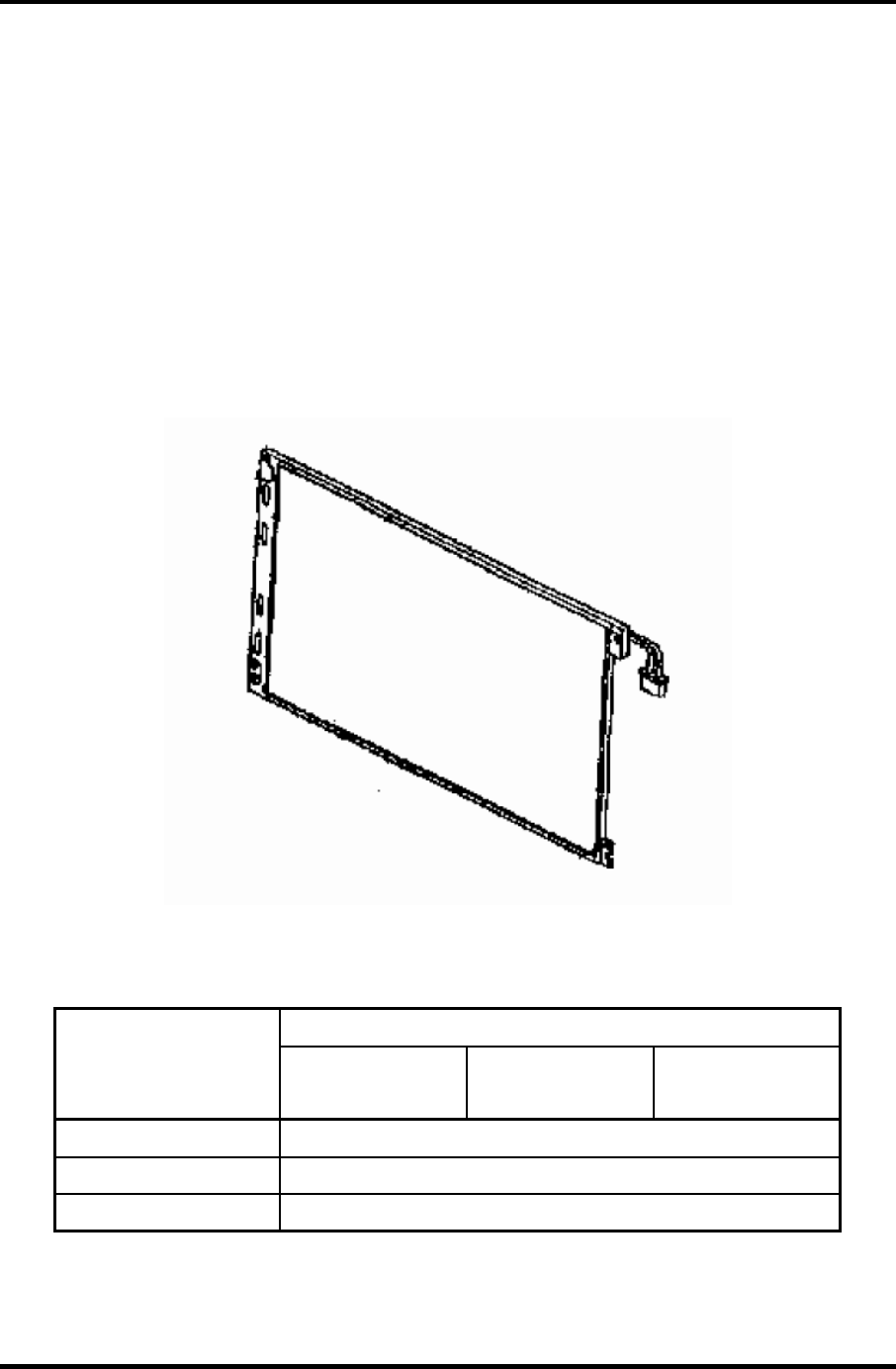

Figure 1-6 LCD module
Table 1-4 LCD module specifications (1/2)
Specifications (15.0-inch XGA TFT)
Item
LG Philips
G33C00030110
SHARP
G33C0002Y110
Samsung
G33C0002W110
Number of Dots
1,024(W) × 768(H)
Dot spacing (mm) 0.297(H) × 0.297(V)
Display range (mm) 304.128(H) × 228.096(V)
1-16 [CONFIDENTIAL] TECRA S3 Maintenance Manual (960-532)
