12. Alignment menu

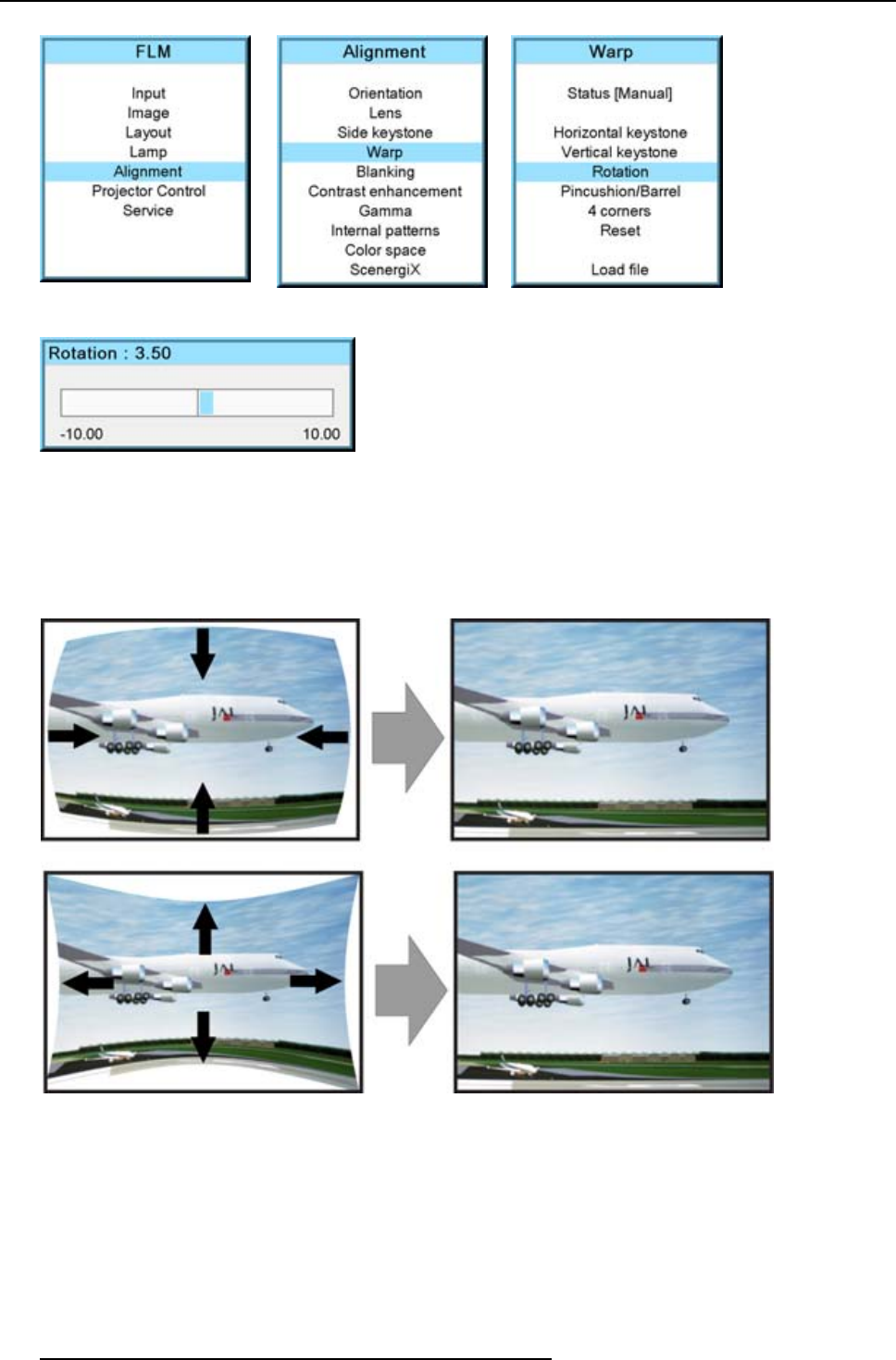

Image 12-32
Image 12-33 Image 12-34
Image 12-35
12.5.6 Pincushion - Barrel correction
What can be done ?
A barrel distortion or pincushion distortion can adjusted so that a normal image is displayed. Positive adjustments introduce more
barrel distortion. Negative adjustments introduce more pincushi
on distortion.
Image 12-36
Barrel and pincushion disto
rtion
How to correct the distortio
n
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select Warp and press ENTER.
The warp dialog box appears.
4. Use the ▲ or ▼ key to select Pincushion/Barrel and press ENTER.
5. Use ◄ or ► to adjust the pincushion or the barrel distortion.
126 R5976921 FLM R20+ PERFORMER 15/03/2010
