Barco R9004430 Projector User Manual



14. Service menu
The internal service pattern window opens.
4. Use the or key to select the desired patterns and press ENTER.
When a pattern is selected, press ENTER to toggle to other patterns of the selected type. Press EXIT to return to the internal
service pattern menu.

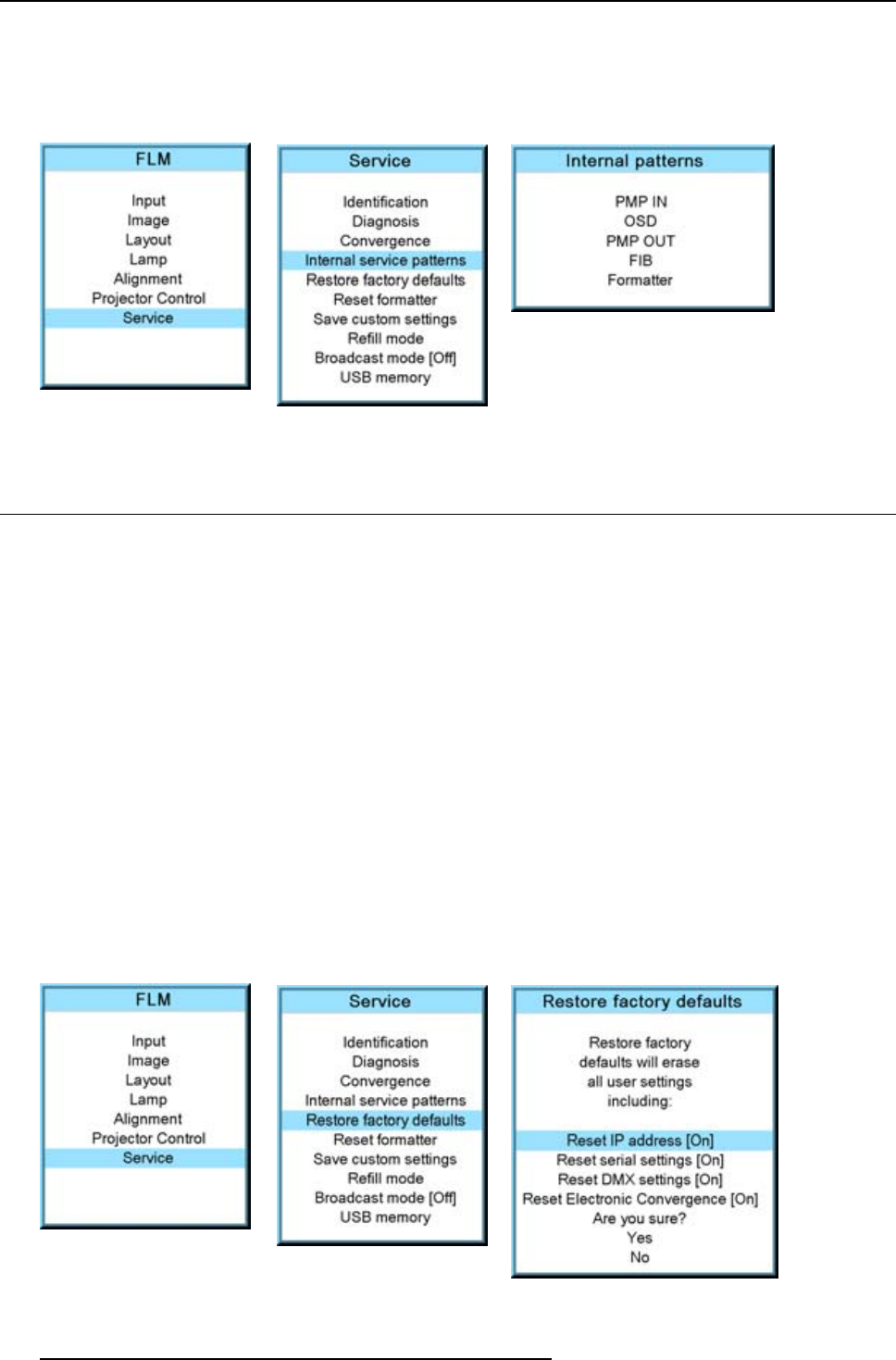

Image 14-40
Image 14-41
Image 14-42
14.6 Restore factory defaults
What can be done?
All settings of the projector will be set to the original factory settings with the exception of :
IP address
Serial settings
DMX settings
Electronic convergence
For these settings the choice exists to exclude them in the reset operation. .
With this operation, all user settings with the exception of the above mentioned are erased.
Howtomakeanexception
1. Press MENU to activate the menus.
2. Use the or key to select Service and press ENTER.
The service window opens.
3. Use the or key to select Restore factory defaults and press ENTER.
The factory defaults conrmation window opens.
4. Use the or key to select the setting to exclude and press ENTER to toggle between [No] and [Yes].
Repeat this step if necessary for the other settings.
Image 14-43
Image 14-44
Image 14-45
174 R5976921 FLM R20+ PERFORMER 15/03/2010
