13. Projector control
[ON] = DHCP is activated. Automatic assigning of an address is activated.
[OFF ] = DHCP is deactivated. A xed address will be used.
Image 13-18
Image 13-19
Image 13-20

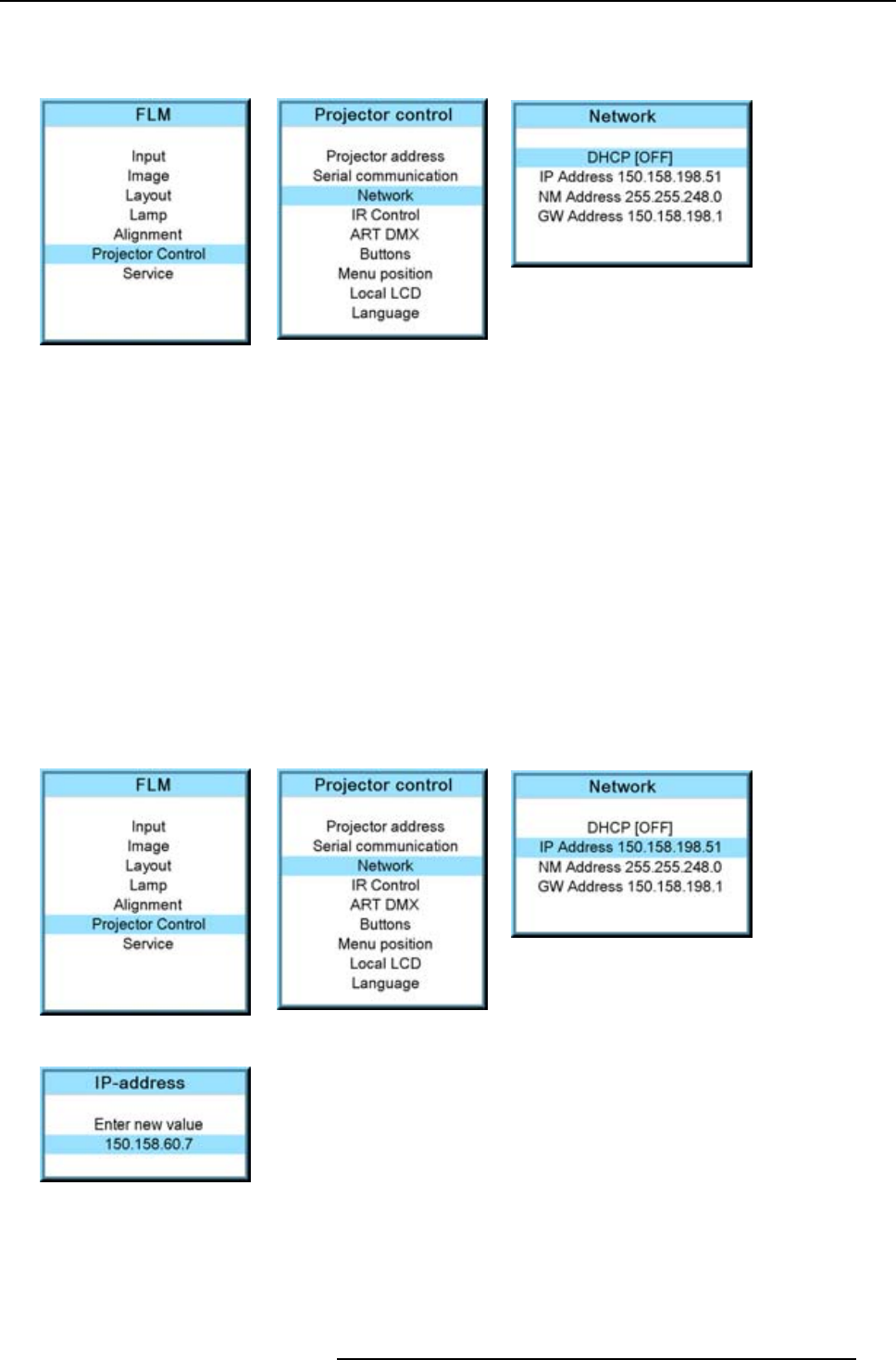

13.4.3 IP-address set up
How to set up?
1. Press MENU to activate the menus.
2. Use the or key to select Projector control and press ENTER.
3. Use the or key to select Network and press ENTER.
The Network menu opens.
4. Use the or key to select IP-address and press ENTER to select.
Note: An address contains 4 octets with a maximum value of 255.
This must NOT be 0.0.0.0 for static IP-Address assignment.
5. Use the or key to select the desired digit and press or key to select the next digit in the address.
Or,
enter the value with the digit keys on the remote control or local keypad. The next digit in the address will be selected automati-
cally.
6. Press EXIT to return.
Image 13-21
Image 13-22
Image 13-23
Image 13-24
13.4.4 Subnet-mask set up
How to set up?
1. Press MENU to activate the menus.
