16. Servicing

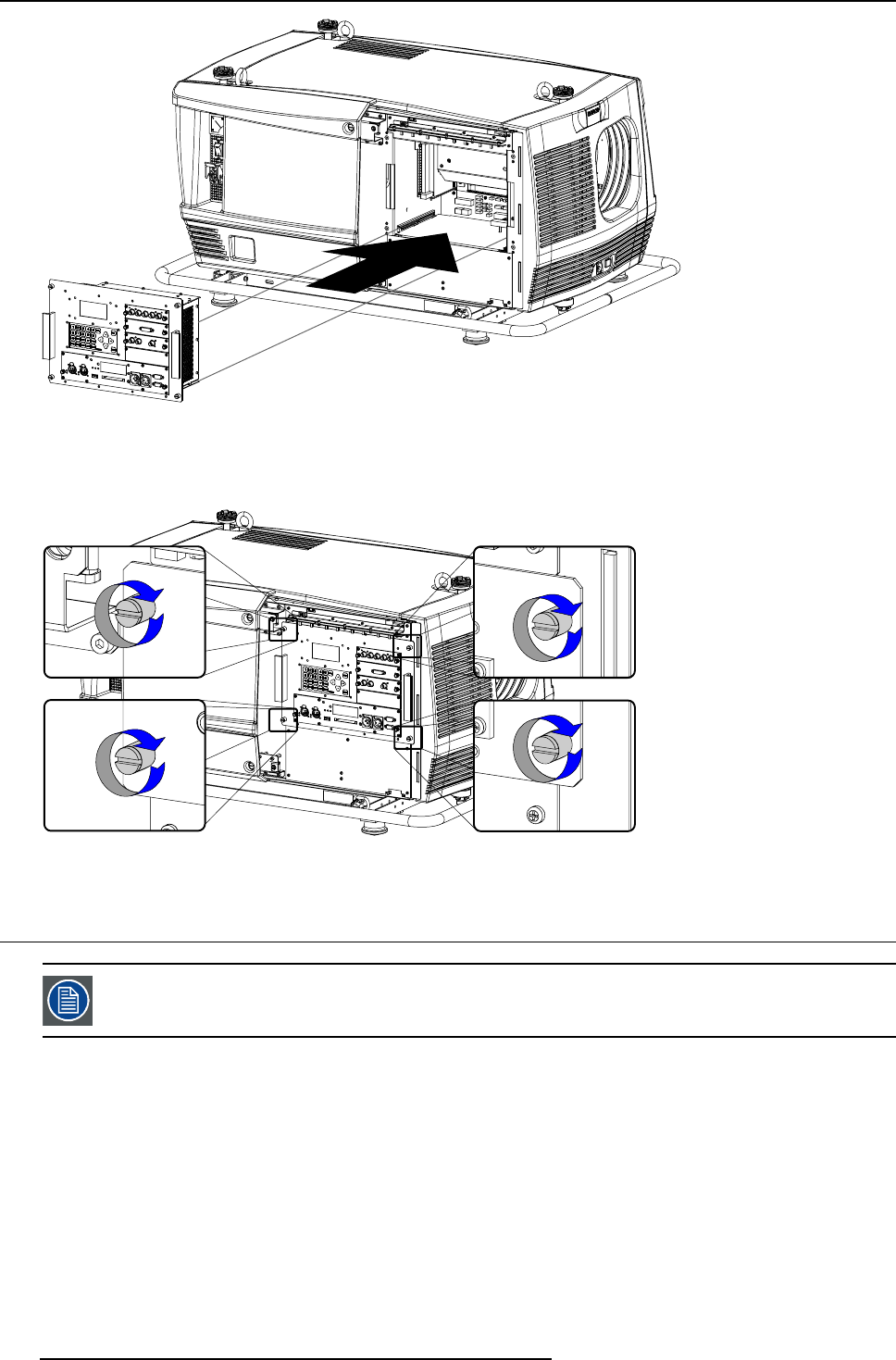

Image 16-9
4. Push the input & communication unit forward until you feel the connectors of the unit
t in their sockets. The back of the front
plate of the unit must touch the chassis of the projector.
5. Secure the input & communication unit by fastening the four captive screws in the corners of the unit.
Image 16-10
16.6 Installation of an input module
The procedure below is applicable to all input modules of the input & communication unit of the projector.
Necessary tools
Phillips screw driver PH1.
How to install an input module into the input & communication unit of the projector ?
1. Switch off the projector and unplug the power cord at the projector side.
2. Slide the input module into the guides of the input slot.
