How to set for the second projector
1. Go to Layout → Main window → Size
2. Enter the value for the Width as follow: Total horizontal screen resolution / 2 - 0.5 x overlap zone.
3. Position = original start + horizontal width of projector 1 - overlap zone

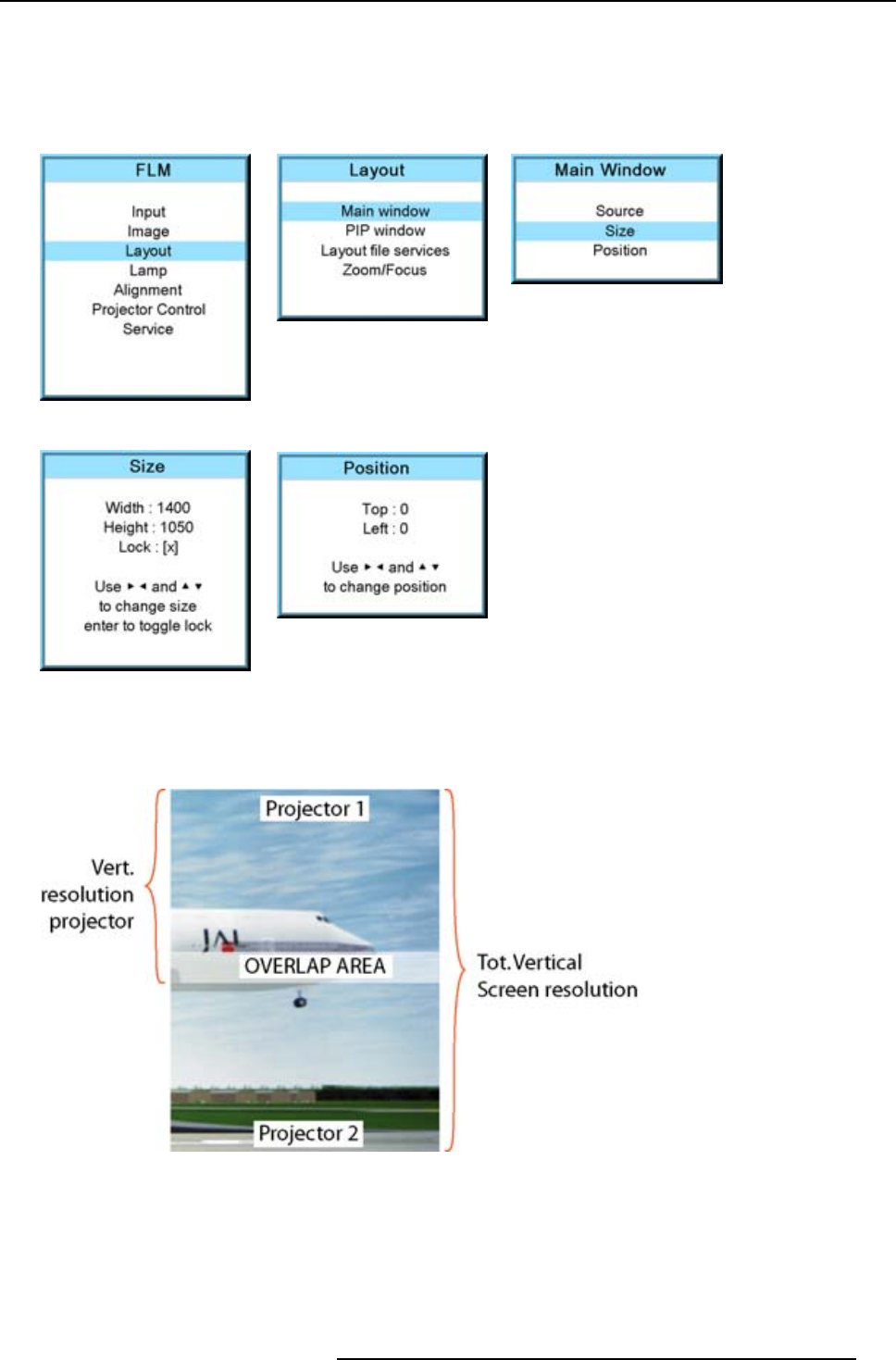

Image 12-83
Image 12-84
Image 12-85
Image 12-86
Image 12-87
12.11.5 ScenergiX overlap zone (vertical ScenergiX)
Definitions
Image 12-88
Scenergix overlap zone vertical
Overlap : number of pixels that
overlap
Vertical resolution of 1 projector
Total vertical screen resolution : [(Vertical resolution of 1 projector) x 2] minus (overlap)
Vertical Resolution source : number of active lines of the source
