14. Installation menu

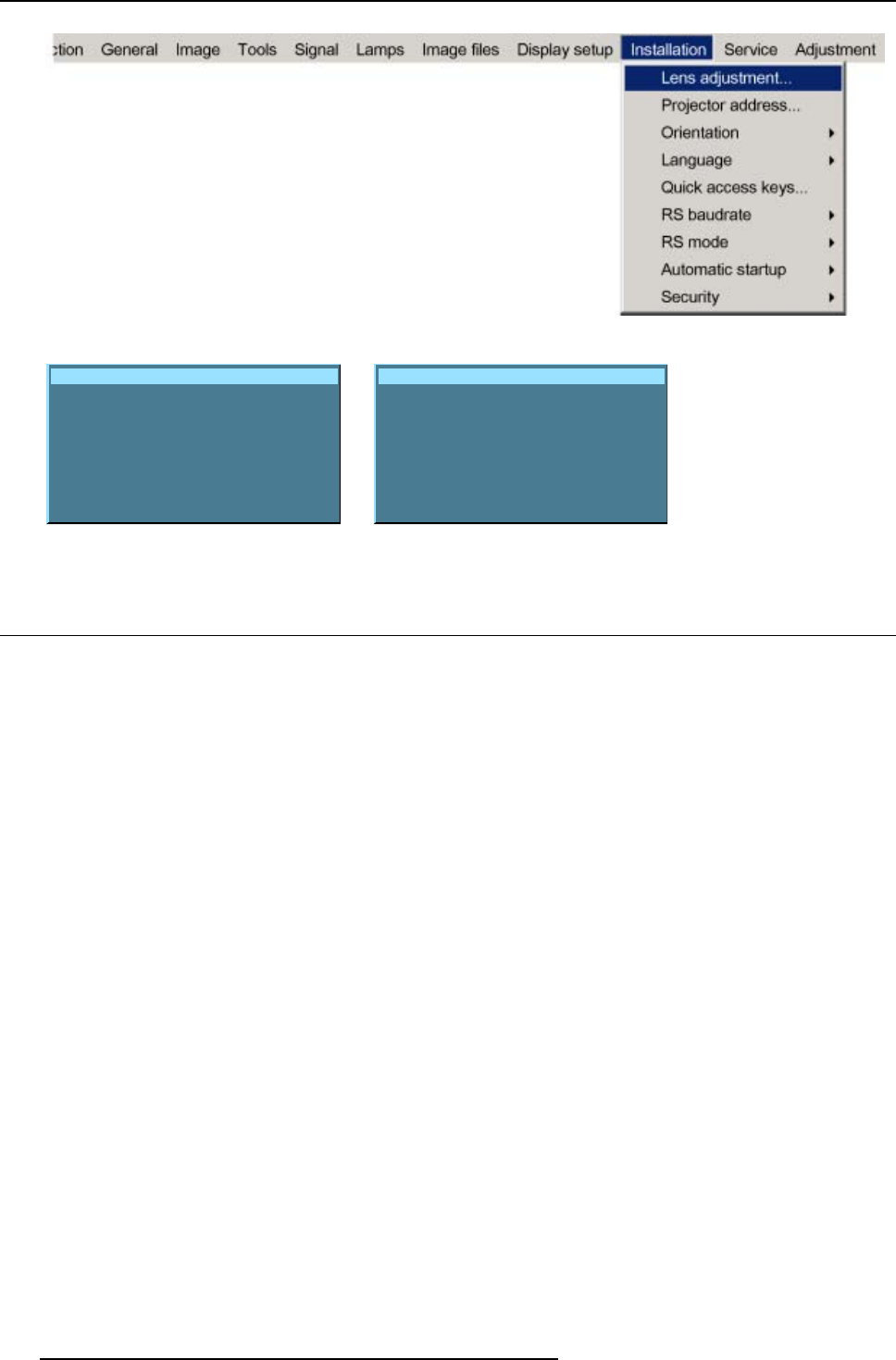

Image 14-1
Lens adjustment
Use
↑
and
↓
for zoom
Use
←
and
→
for focus
Press <enter> for SHIFT mode
Press <LOGO> or <LENS>
for test pattern
Image 14-2
Lens adjustment
Use
↑
and
↓
for vertical shift
Use
←
and
→
for horizontal shift
Press <enter> for ZOOM/FOCUS
Press <LOGO> or <LENS>
for test pattern
Image 14-3
14.2 Projector address
What can be done ?
In some cases the projector address must be changed, for example if an unique RCU is used to control 2 or more projectors in a
room
.
The projector address setting on the projector must match the setting on the RCU.
What can be changed ?
Within the ’Change Projector Address’ menu, the following items can be changed
•Proj
ector address: address defined by the user. Can be set between 0 and 255 when controlled via RS232 and between 0 and
9whencontrolledviatheRCU
• Common address : address may be 0 or 1
How to change the projector’s address ?
1. Press MENU to activate the menu bar.
2. Press → to select the Installation. (image 14-4)
3. Press ↓ to pull down the Ins tallation menu.
4. Use ↑ or ↓ to select Projector address.
5. Press
ENTER to confirm .
A dialog box appears on the screen. Projector address is selected. (image 14-5)
6. Press ENTER to go to the edit mode.
The most right digit will be selected. Use the left arrow key to jump to the other digits. (image 14-6)
7. Enter an address between 0 and 255 with the digit keys on the RCU and press ENTER to activate.
