6. Source selection
2. Press ↓ to pull down the Source Selection menu.
3. Use ↑ or ↓ to select S-Video.
4. Press → to pull down the submenu.

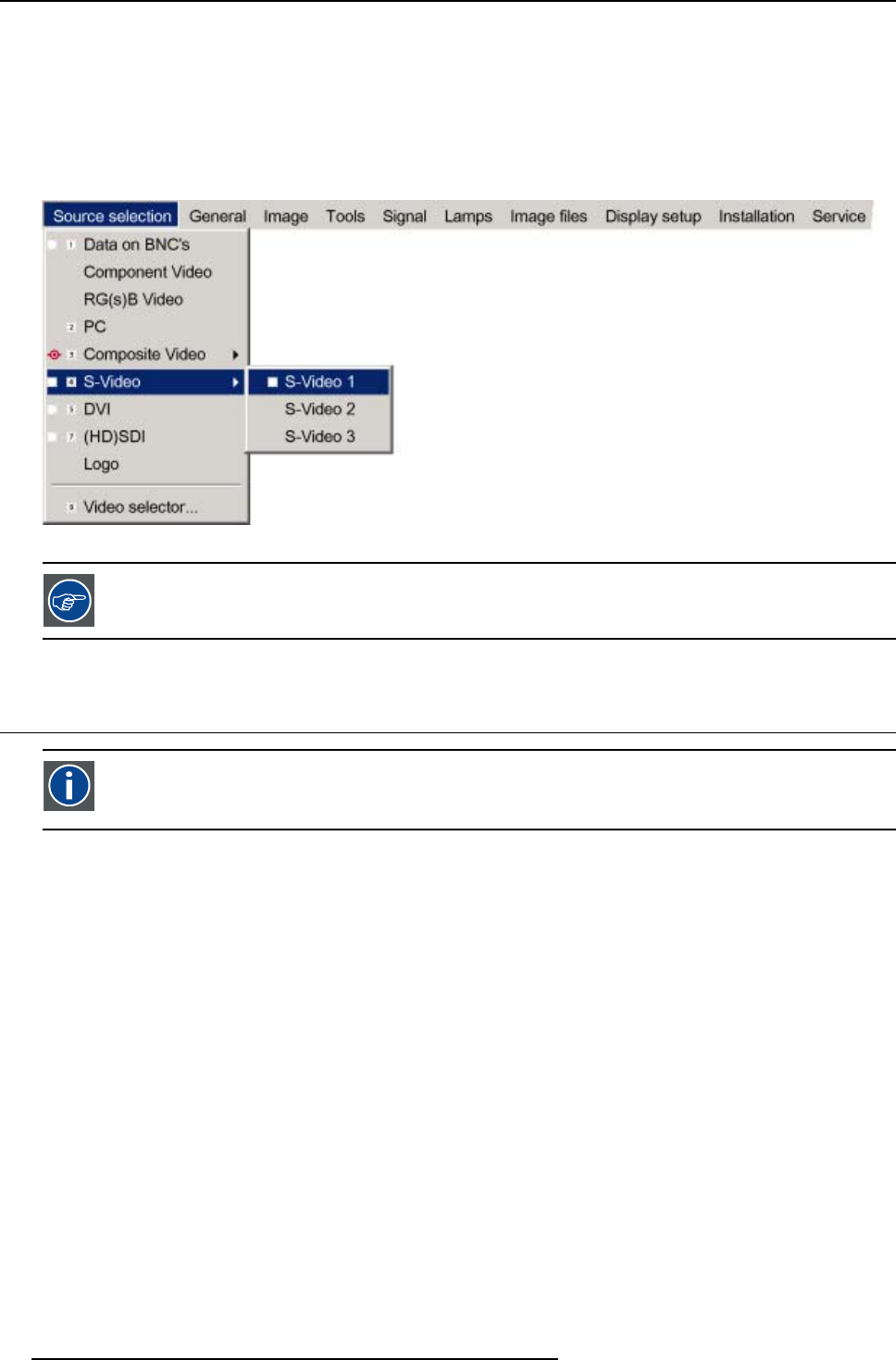

5. Use ↑ or ↓ to select one of the different S-Video inputs. (image 6-4)
6. Press ENTER to confirm your choice.
A white bullet indicates the selected S-Video source. This source will be displayed on the screen.
Image 6-4
The S-Video sources can also be selected using the video selector or via the dedicated key 4 on the RCU. Key
4 allows to browse through the active S-Video inputs when the extended mode is checked in Video Selector.
6.7 The Video Selector
Video Selector
The Video Selector is a graphical interface which allows an overview of the different video inputs (Composite Video
and S-Video) and whether they are active (signal connected) or not as well as the selection of these different signals.
Video selector modes
The video selector has two modes:
• standard mode : the video selectable video inputs are the standard composite video & S-Video input
• extended mode : several BNC connections are added and can be selected as video inputs or S-Video inputs.
How to switch the mode
1. Press MENU to activate the menu bar.
2. Press ↓ to pull down the Source Selection menu.
3. Use ↑ or ↓ to select Video selector... .(image6-5)
A message will be displayed and followed by a graphical user interface.
4. Use the arrow keys to select the Extended check box.
5. Press ENTER to disable or enable the extended mode.
Check Extended to switch to extended mode.
Uncheck Extended to switch to standard mode.
