3. Connections
Input specifications
(HD)SDI input : BNC
(HD)SDI output : BNC (= loop through)
typical : 0.8 Vpp
75 terminated
output impedance: 75
TWO WAY
HARDWIRED REMOTE
2
1
3
PUSH
R/PR
G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

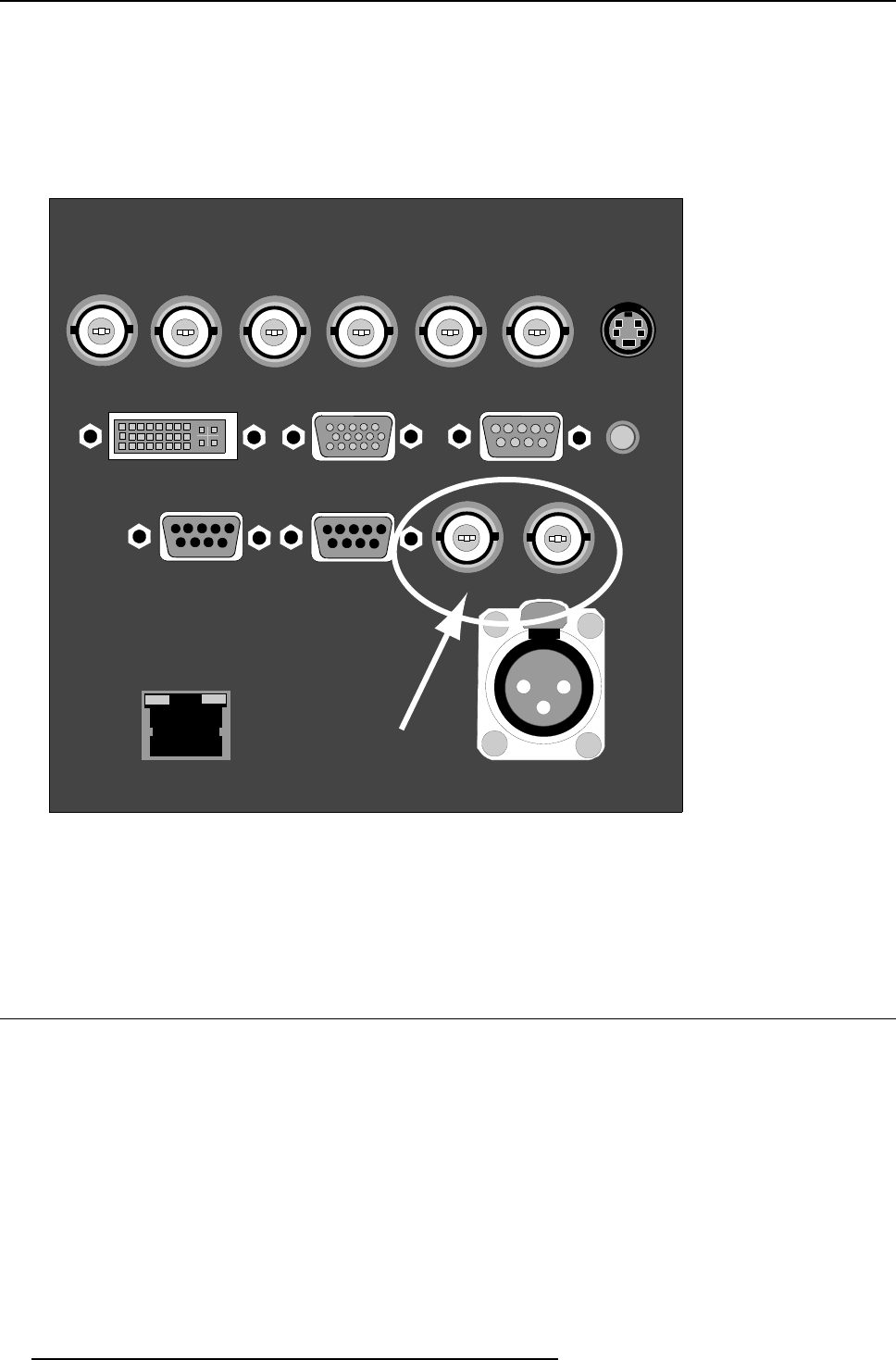

Image 3-9
(HD)SDI input
How to select the (HD)SDI input
1. Press 7 on the RCU
Note: Another way for selecting this input is via
Source on the local keypad or via the Me nu.
3.9 Communication connection
Overview
RS232 IN connection
Wireless receiver
3.9.1 RS232 IN connection
What can be connected to the RS232
/422 IN connection ?
The RS232 IN connection allows the projector to communicate with a computer e.g. IBM PC or Apple Macintosh.
30
