6. Source selection
6.5 Composite Video
Possible connections
In normal mode, one video source can be connected to the video input.
In extended mode, up to 7 different video sources can be connected to the normal video input, or to the extended 5-cable input or
to the S-Video.
When the extended mode is not switched on, the on screen menu will have another layout with less selection
possibilities.
How to select one of 7 different composite video inputs when in extended mode
1. Press MENU to activate the menu bar.
2. Press to pull down the Source Selection menu.
3. Use or to select Composite video.
4. Press to pull down the submenu.
5. Use or to select one of the different video inputs. (image 6-3)
6. Press ENTER to confirm your choice.
A white bullet will indicate the selected composite video source. This source will be displayed on the screen.

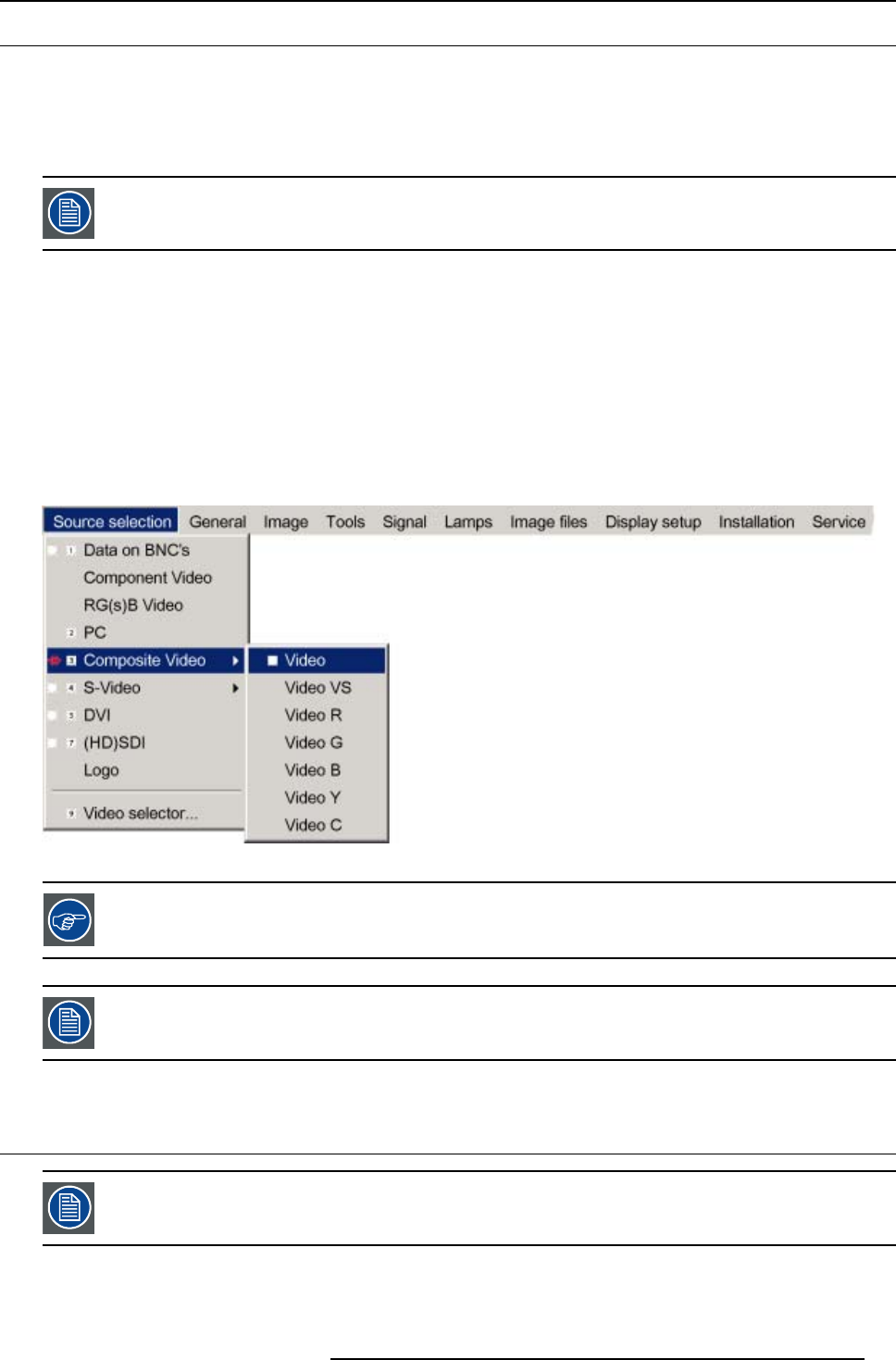

Image 6-3
The composite video sources can also be selected using the video selector or via the dedicated key 3 on the
RCU. Key 3 allows to browse through the active video inputs when the extended mode is checked in Video
Selector..
Multiple video signals cannot be visualized simultaneously since there is only one decoder.
6.6 S-Video selection
When the extended mode is not switched on, the on screen menu will have another layout with less selection
possibilities.
How to select one of the 3 S-Video inputs ?
1. Press MENU to activate the menu bar.
