3. Connections
TWO WAY
HARDWIRED REMOTE
2
1
3
PUSH
R/PR
G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

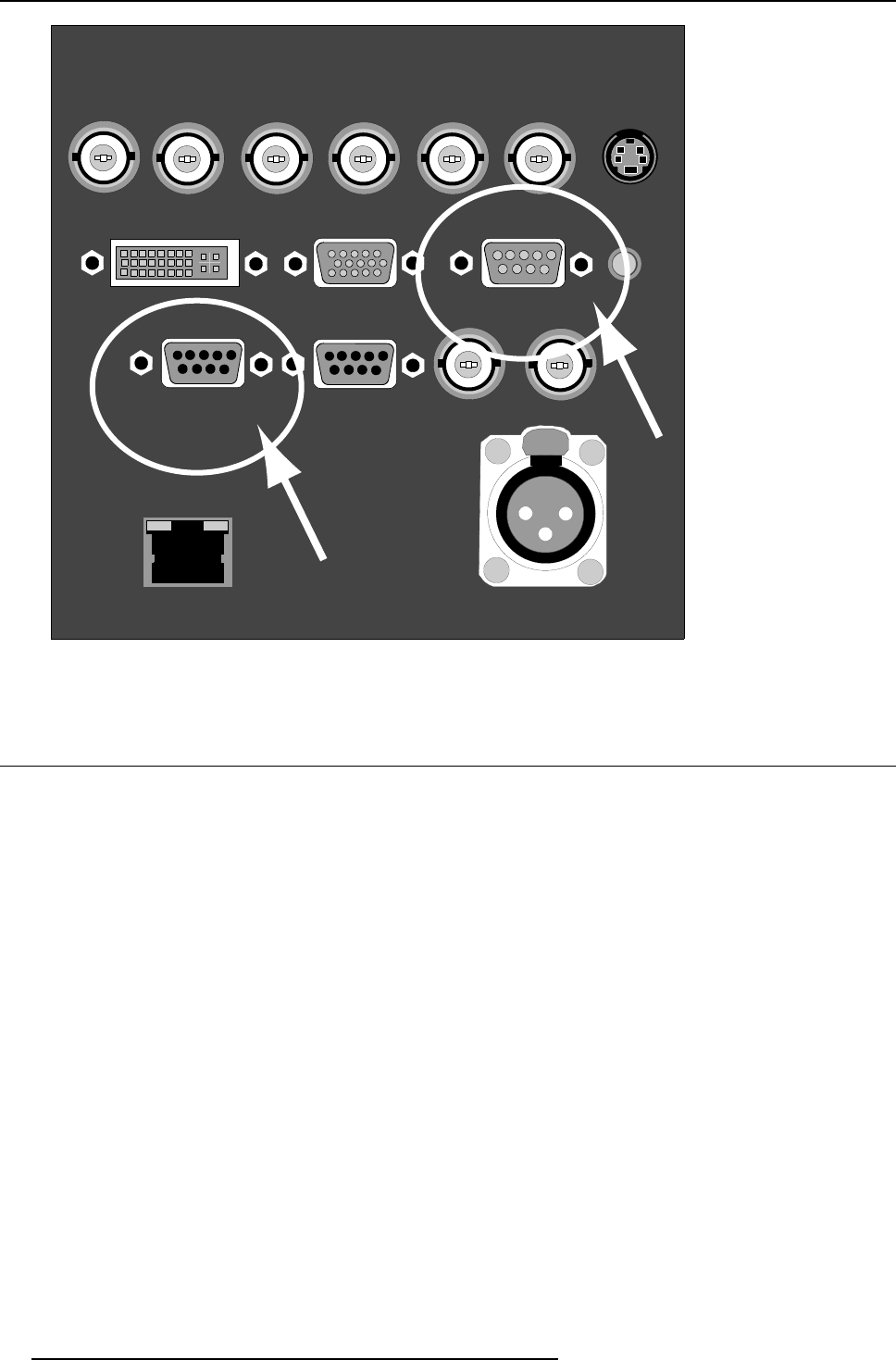

Image 3-11
Wireless receiver connection
3.10 Extended configuration
Overview
• Introduction
• 5-cable extended configuration
• S-Video extended configuration
• Summarizing
3.10.1 Introduction
What can be done ?
The extended configuration allows to connect multiple equal source types to the inputs and allow switching between this wide range
of input signals.
3.10.2 5-cable extended configuration
What can be done ?
Beside the standard RGB, composite & sync signals, the extended capabilities of the 5-cable inputs make treatment of additional
signals possible:
• a composite video signal may be connected to 4 of the 5 BNC’s (beside the standard video BNC input)
• a S-Video signal can be connected
