3. Connections
L1
L2
L3
L4
TWO WAY
HARDWIRED REMOTE
2
1
3
PUSH
R/PR
G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

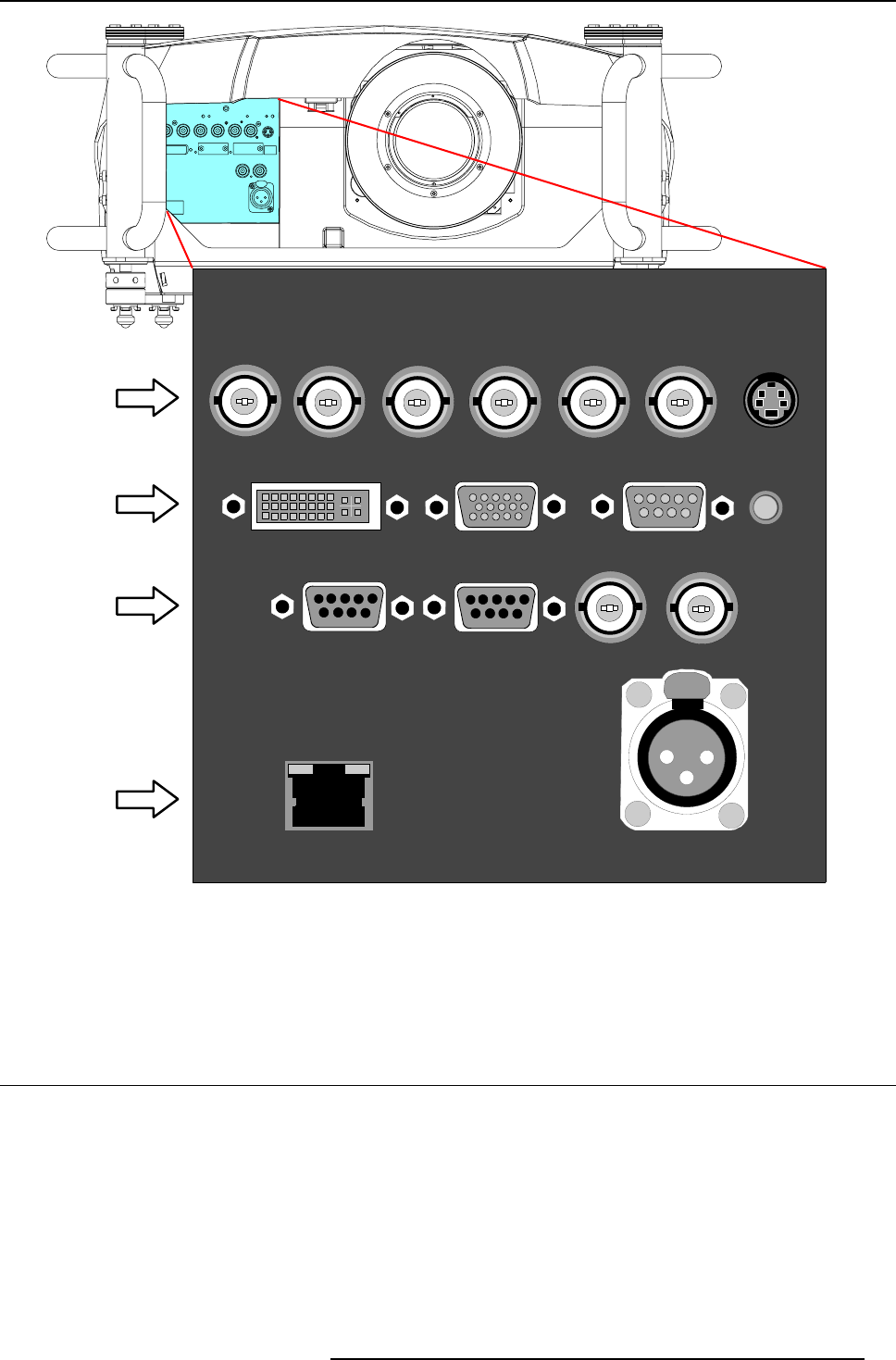

Image 3-2
Input facilities
L1 Layer 1 = RGBHV + Composite Video + S-Video
L2 Layer 2 = DVI + Computer + RS232IN + RC (wired remote control)
L3 Layer 3 = (HD)SDI in and out + RS232OUT + Power wireless receiver
L4 Layer 4 = Two way hardwired remote + Ethernet
3.3 5-Cable input
Input specifications
The 5-cable input sec
tion is made of 5 BNC input terminals.
0.7 Vpp ± 3dB
75 Ω terminated
