2. Installation Guidelines

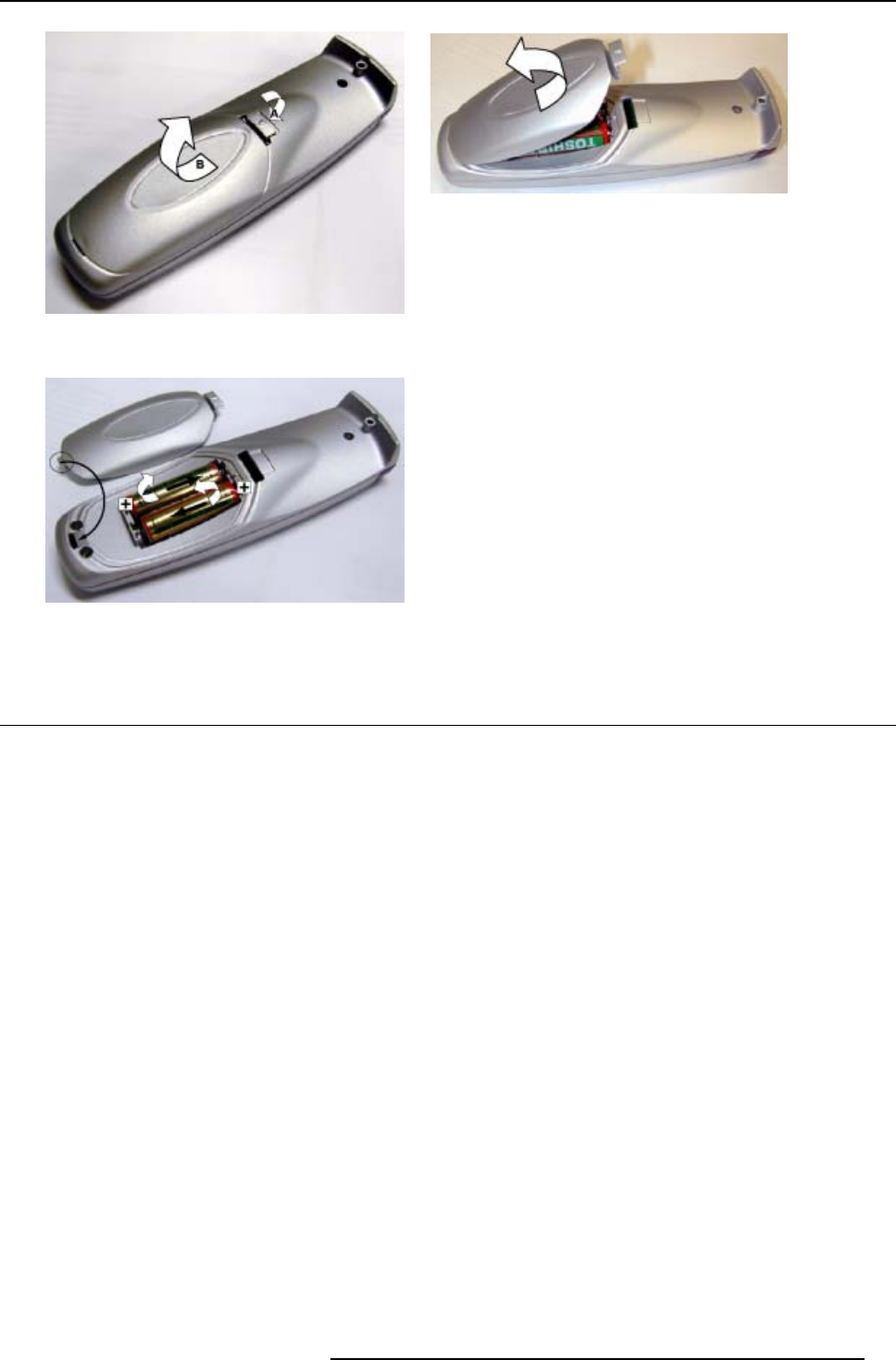

Image 2-4
Battery cover unlock
Image 2-5
Battery cover removal
Image 2-6
Battery removal
2.5 Stacking projectors
What is possible?
Up
to 2 projectors can be stacked on each other without using extra tools or accessories.
H
ow to stack?
Handle as follow:
1. Put
the second projector on the first one so that base plate of the second projector matches with the rigging socket of the first
projector. (image 2-7)
2. Turn the rigging sockets of the second projector counter clockwise until they are free to move up and down. (image 2-8)
3. Secure the projectors on each other by bringing the free part of the second projector into the socket of the first projector and turn
aq
uarter clockwise while pushing downwards until it clicks in.
4. For ceiling mounted configurations, mount a security cable between the lowest projector and the upper projector. (image 2-9)
Warning: Be sure the safe working loud of the used security cables and connectors are enough to support one p rojector. Refer
to the supplier of the security ca ble for safety details.
