Hardware Upgrades
Writer: M. Church Project: Compaq Professional Workstation AP200 Reference Guide Comments: 352620-003
File Name: E-CH04.DOC Last Saved On: 1/19/99 9:40 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1
2
3

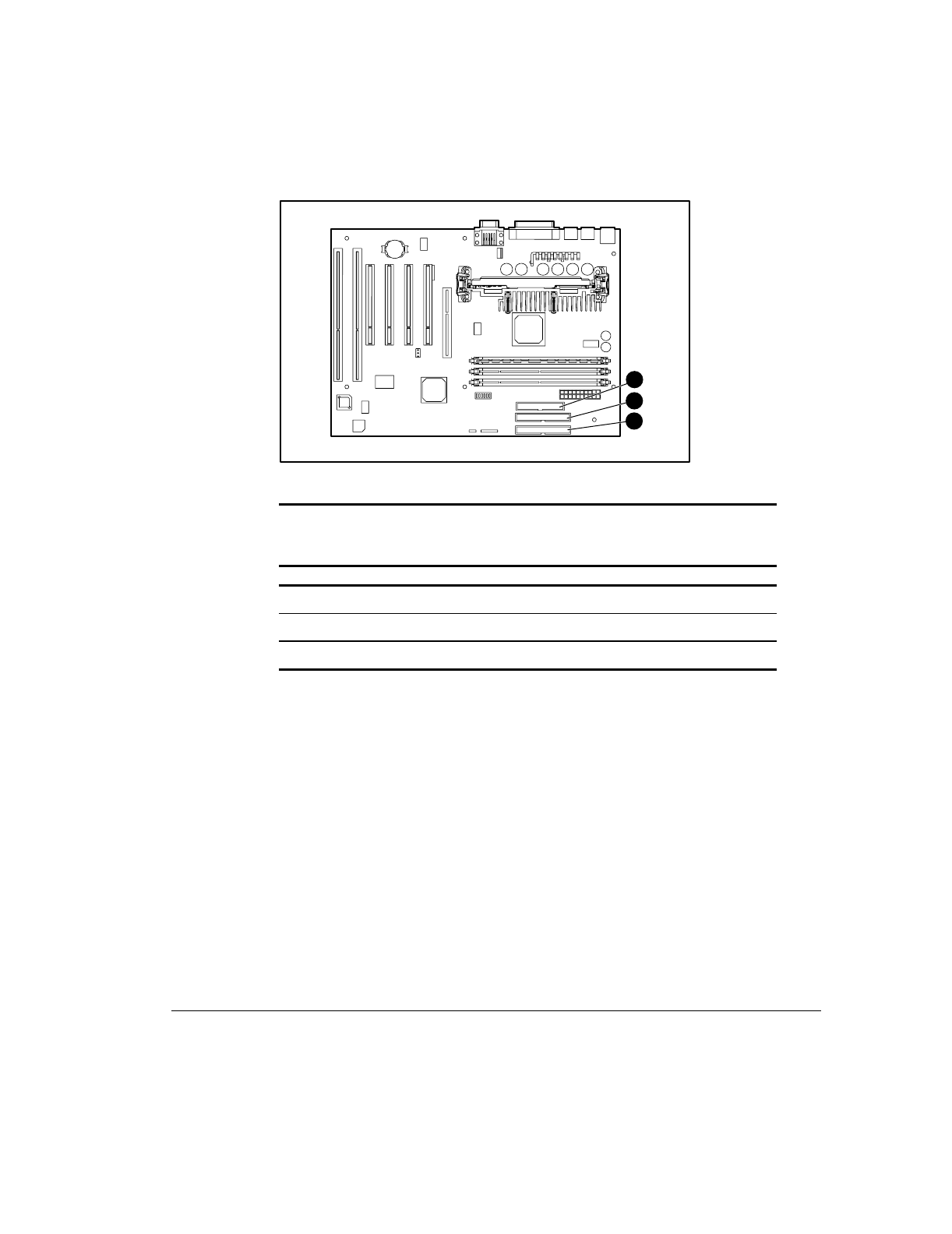

Figure 4-19. Connecting the drive cables to the system board
Table 4-2
Drive Cables
Identifier Component
1
IDE diskette drive connector
2
IDE Ultra ATA hard drive connector
3
IDE CD-ROM connector
5. Remove the bezel blank from the subpanel inside the front bezel. See the
section “Removing the Bezel Blank.”
6. Replace the workstation access panel.
7. Plug the network cable back into the system. Plug the power cord back
into the grounded AC outlet. Reconnect external devices.
8. Reconfigure the workstation, if necessary. See the “When to
Reconfigure the Workstation” section in this chapter.
