HTML Operation, cont’d
Fiber Matrix 6400 Switcher • HTML Operation
6-10
N
The following characters are invalid in a domain name:
{space} @ + ~ , = ‘ [ ] { } < > ’ “ ; : | \ and ?.
Email Address fields
The eight Email Address fields identify the e-mail addresses of the personnel to
whom the Fiber Matrix switcher e-mails notification of its failure and repair status.
Standard e-mail address conventions (nnnnn@xxx.com) apply.
The check boxes and drop boxes associated with each address field permit the
operator to specify specific criteria under which the switcher will e-mail recipients.
In the associated Missing Input drop boxes, select the inputs to monitor for
presence or absence of a signal. Check the Fans and Power boxes to monitor the
cooling and power supplies. In the associated Email Options drop box, select
whether the recipient is to be e-mailed of failures, fixes, both, not notified, or to
be removed from the e-mail list. The Suspend option is useful for temporarily
removing personnel from the e-mail list when they are unavailable, such as on
travel or vacation. Deleting an e-mail addressee and clicking the Submit button
removes the recipient from e-mail notification completely.
Firmware Upgrade page
The Firmware Upgrade page provides a way to replace the firmware that is coded
on the switcher’s control board without taking the switcher out of service, opening
the switcher enclosure, and replacing the firmware chip. Access the Firmware
Upgrade page (figure 6-8) by clicking the Firmware Upgrade link on the System
Settings page.
Refresh
Select Email Settings
Passwords
Select System Settings

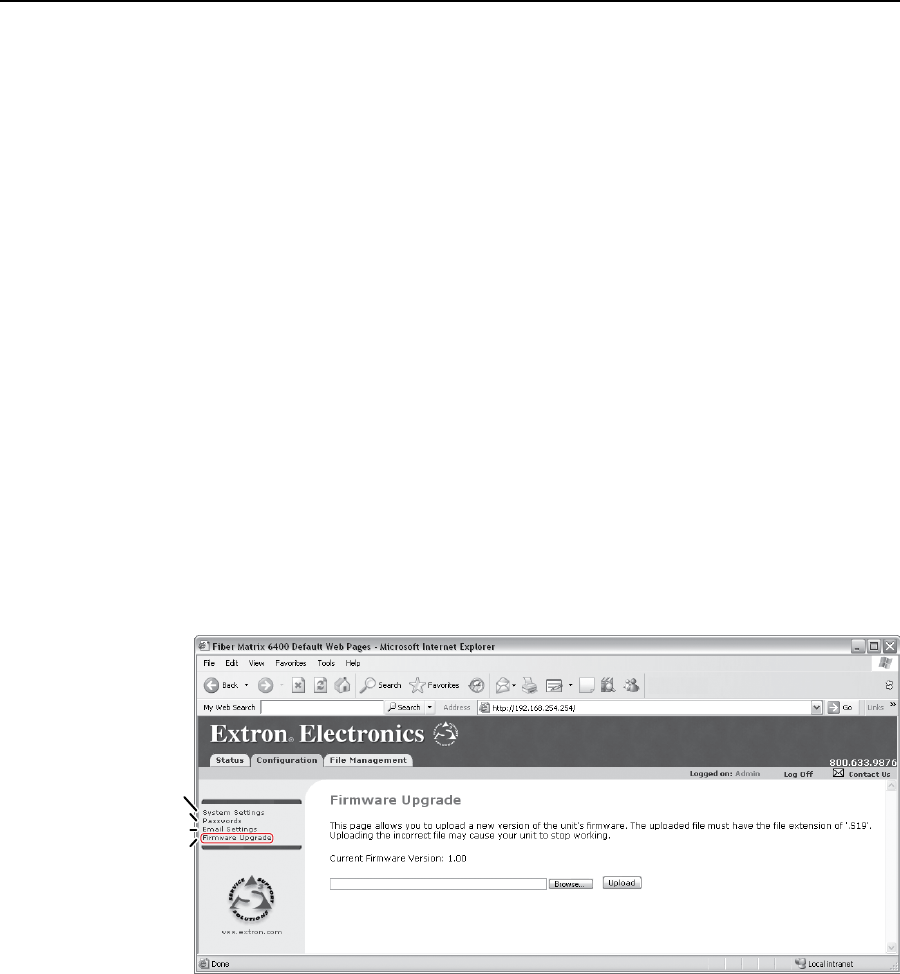

Figure 6-8 — Firmware Upgrade page
Update the switcher firmware as follows:
N
The Firmware Upgrade page is only for replacing the firmware that controls
all switcher operation. To insert your own custom HTML pages, see “File
Management Page”, on page 6-12.
