Using the swap feature
Use the swap feature to switch the active main window input with the current PIP input.
For example if the main window is Input 4 (RGB scaled) and the PIP window is Input 1
(composite), applying the swap command results in Input 1 becoming the main window
and Input 4 the PIP window.
For audio models (DVS 304 A, DVS 304 AD, DVS 304 DVI A, and DVS 304 DVI AD), you
can set audio to follow the main (default) or PIP window. Audio breakaway is not possible
while PIP mode is on; audio must follow either the main window or the PIP window.
Exit Menu
From this submenu, press the Menu button to return to the Start Auto Image menu cycle,
or press the Next button to return to the default cycle.
START AUTO
IMAGE ON IN1
MENU
MENU
INPUT
CONFIG
MEMORY
PRESETS
2 sec.
INPUT 1
COMPOSITE
OUTPUT
1024 x 768@60
Default Cycle
2 sec.
IP
CONFIG
MENU
MENU
ADVANCED
CONFIG
MENU
MENU
TO EXIT MENU
PRESS NEXT
MENU
CONTROL
MENU
OUTPUT
CONFIG
MENU
AUDIO
CONFIG
(Audio models only)
MENU
NEXT

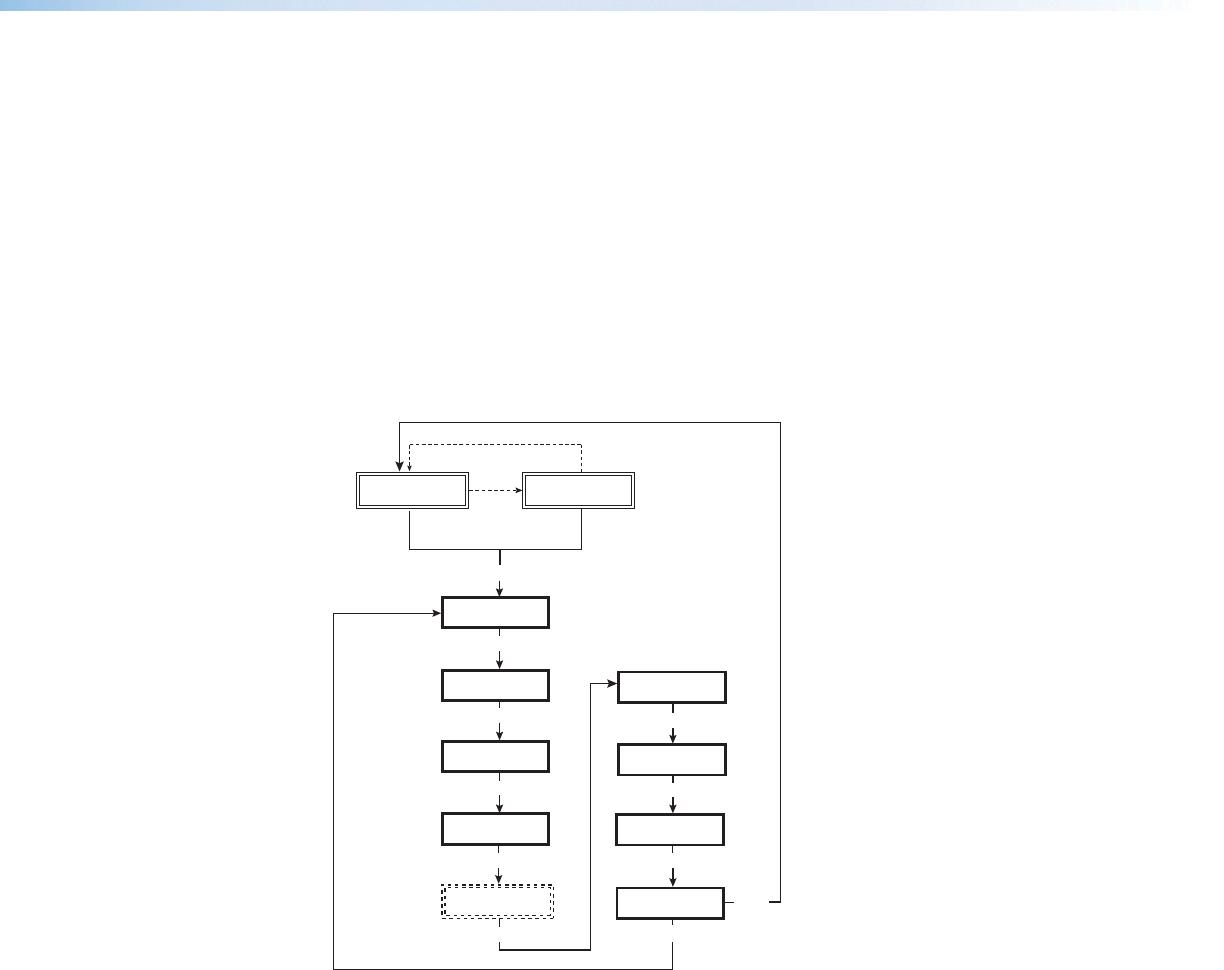

Figure 23. Exit Menu
Resetting an Input
Each input of the DVS 304 scaler can have its parameters, including auto memories, reset
to default values by holding down the specific input button together with the Menu
button, until the input number and Reset message is displayed on the LCD screen.
DVS 304 Series • Operation 23
