Panel Calibration
21
NXD-500i 5" Wall/Flush Mount Touch Panel with Intercom
Panel Calibration
This section outlines the steps for calibrating the touch panel. Calibrating the panel before its initial use
and after completing a firmware download is highly recommended.
Modero panels are set up in the factory with specific demo touch panel pages. The first splash screen that
appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the
default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial
Panel Page.
Calibrating the Modero Panel
1. Press and hold the grey Front Bezel button (FIG. 15) for 8 seconds to pass over the Setup page and
access the Calibration setup page (FIG. 16).
2. Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 16).
3. After the "Calibration Successful." message appears, press anywhere on the screen to continue and
return to the Setup page.

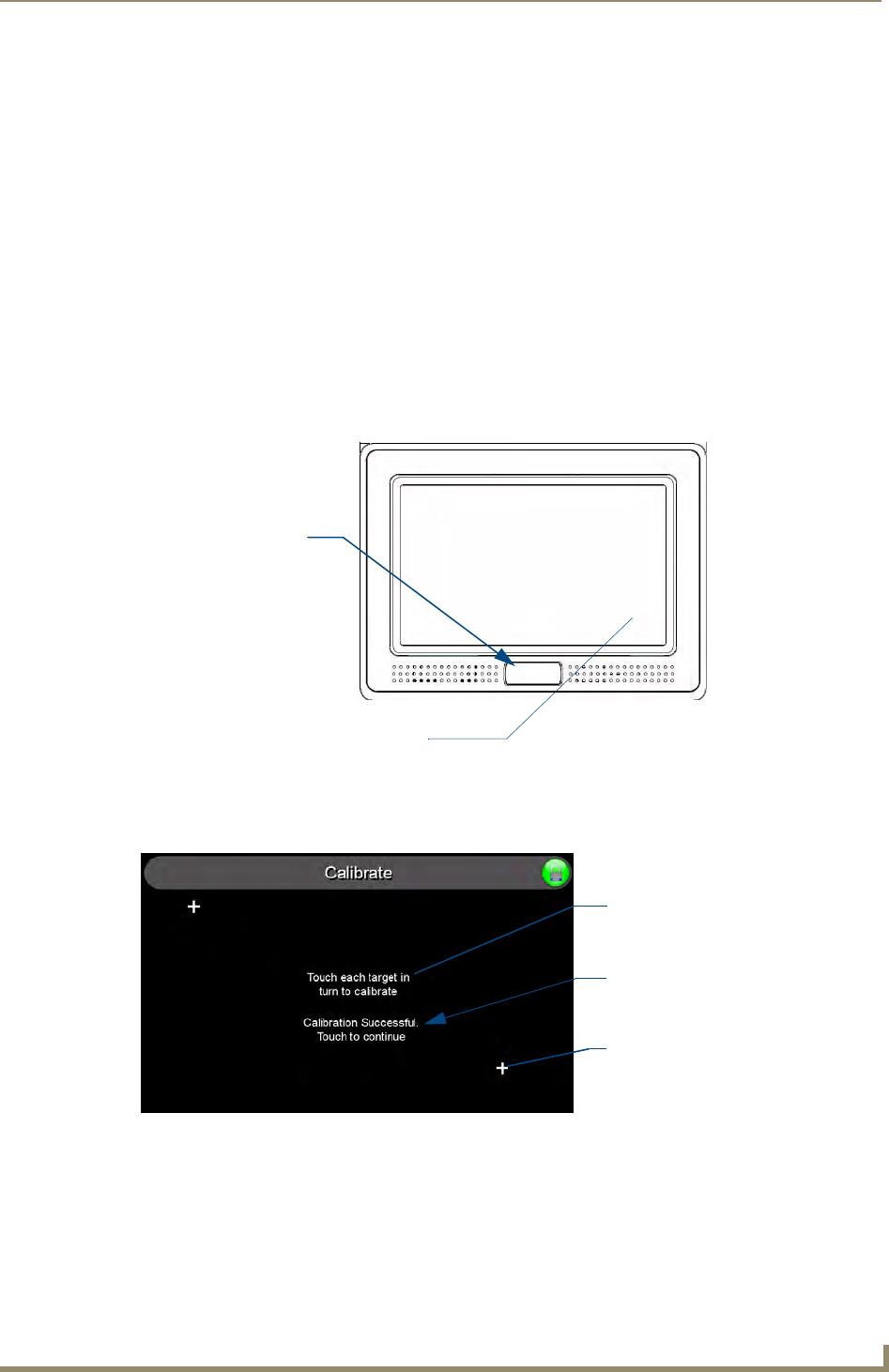

FIG. 15 Location of Front Setup Access button
FIG. 16 Touch Panel Calibration Screens
Front Bezel button
4 second press/hold:
Opens the Setup page
6 second press/hold:
Opens the Calibration page
Single press puts
the panel to sleep
The request to touch the crosshairs
is the first on-screen message
Calibration successful is the second
on-screen message that appears
On-screen crosshairs used for
calibration of the touch device
after the calibration process is
completed
