Protected Setup Page Elements (Cont.)
System Recovery: Either resets the touch panel to factory default settings and/or wipes out all
existing touch panel pages:
• The Reset System Settings button allows a user to wipe out all current
configuration parameters on the touch panel (such as IP Addresses, Device
Number assignments, Passwords, and other presets).
- Pressing this button launches a Confirmation dialog (FIG. 43) which asks
you to confirm your selection.
- This dialog is configured with a delay timer that does not enable the YES
button for 5 seconds. This delay provides an additional amount of time for
the user to confirm their decision.
• The Remove User Pages button allows the removal of all current TPD4
touch panel pages currently on the panel (including the pre-installed AMX
Demo pages).
- Pressing this button launches a Confirmation dialog (FIG. 43) which asks
to confirm your selection.
- This dialog is configured with a delay timer that does not enable the YES
button for 5 seconds. This delay provides an additional amount of time for
the user to confirm their decision.
Reboot/Shutdown Panel: Reboot: Pressing this button causes the panel to restart after saving any
changes.
Shutdown: Pressing this button causes the panel to shut down after saving
any changes.

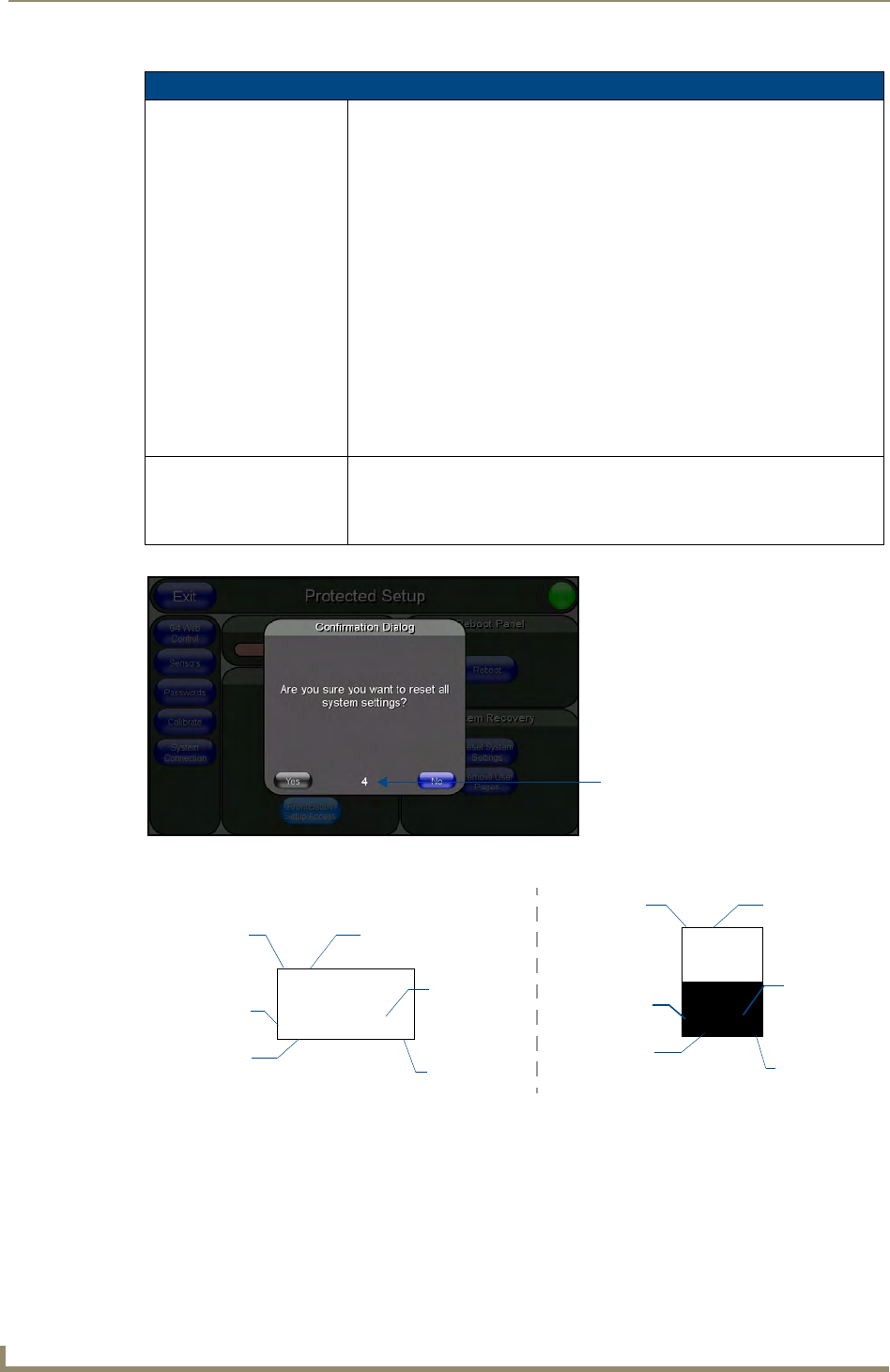

FIG. 43
Protected Setup page-System Recovery confirmation dialog
FIG. 44 Button/slider Function Show example
This dialog has a wait time of 5 seconds
before the YES option is enabled.
