NXD-500i 5" Wall/Flush Mount Touch Panel with Intercom
Calibration Page
The Calibration page (FIG. 46) allows you to calibrate the touch panel for maximum sensitivity.
Press and hold the Front Setup Access button for 6 seconds to access the Calibration page.
Press the crosshairs to calibrate the panel and return to the last active firmware page.

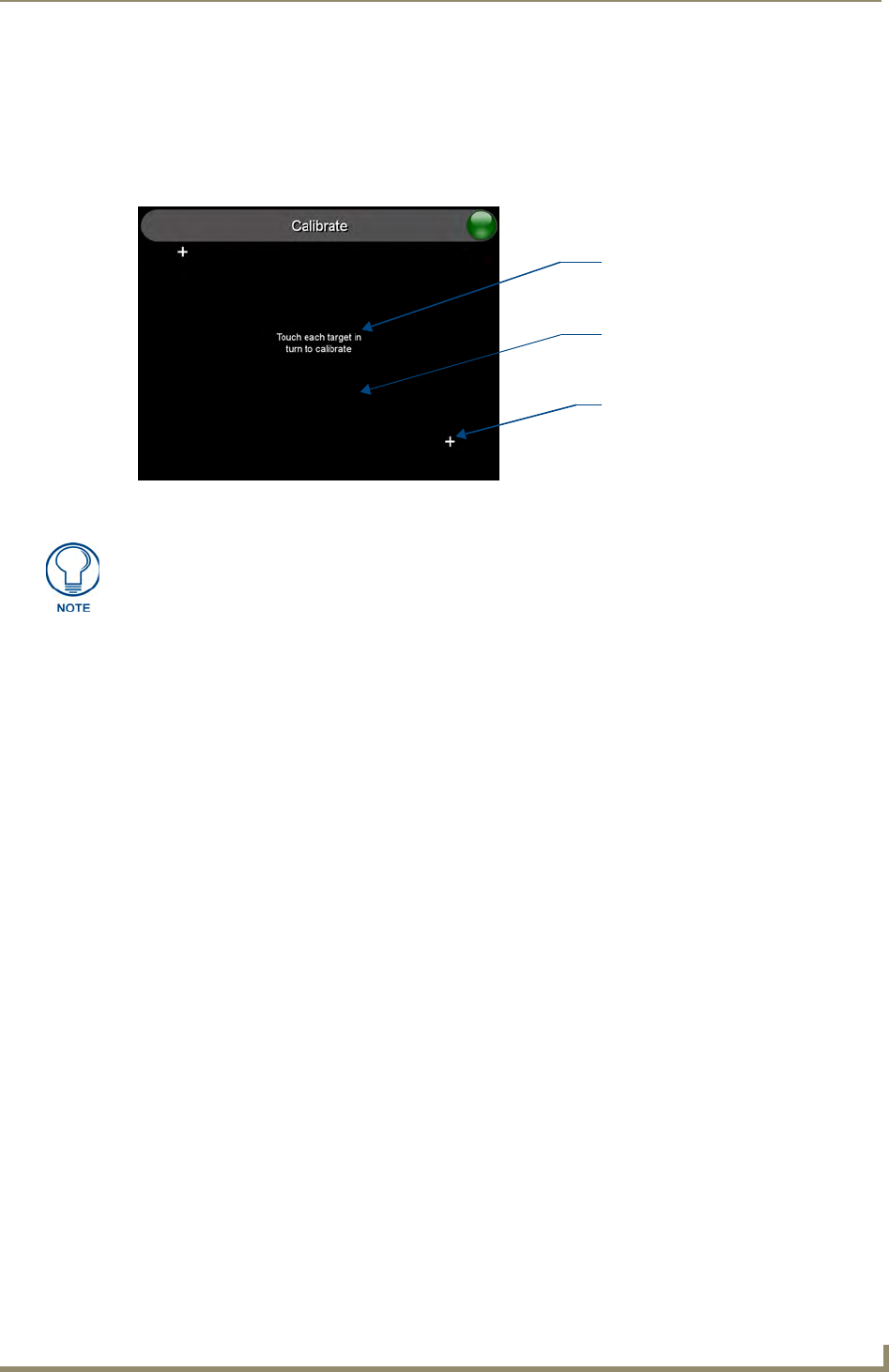

FIG. 46
Calibration page (actually 3 separate screens)
The request to touch the crosshairs
is the first on-screen message
Calibration successful is the second
on-screen message that appears
On-screen crosshairs used for
calibration of the touch device
after the calibration process is
completed
If the calibration was improperly set and the Calibration page cannot be
reached through the panel’s firmware, this firmware page may be accessed via
G4 Web Control. Navigate to the Protected Setup page and press the Calibrate
button through the VNC window. This action causes the panel to go to the Calibration
page seen above, where the touch panel may be physically recalibrated again using
the above procedures.
