NXD-500i 5" Wall/Flush Mount Touch Panel with Intercom
FIG. 3 shows the connectors located on the NXD-500i Modero panel. The mini-USB port is used both
for programming the touch panel and for audio output. The mini-USB port automatically detects the
presence of a headphone adaptor, allowing the port to be used for headphone connectivity.
The NXD-500i supports Intercom functionality, which allows two communicating panels (controlled by
the NetLinx Master) to transmit full-duplex audio signals over a network in order for it to be used as an
Intercom system.

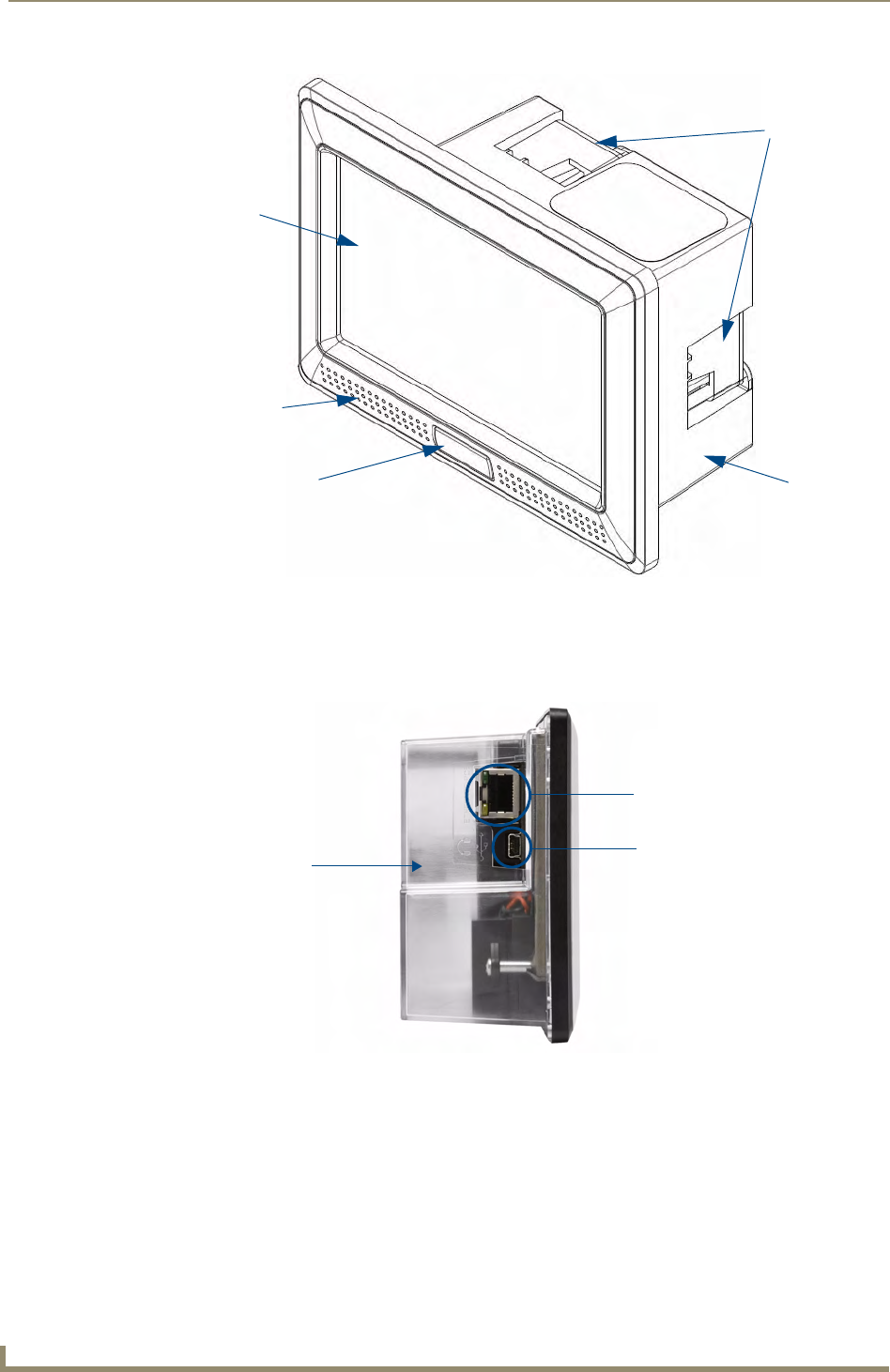

FIG. 2 NXD-500i Color Video Touch Panel - Schematics
FIG. 3 NXD-500i Color Video Touch Panel - side view of connectors
Touch screen
Button trim ring
Locking tabs
Back box
Front Bezel button
Mini-USB port
Ethernet 10/100 port
Back box
