Setup Pages and Descriptions
74
NXD-500i 5" Wall/Flush Mount Touch Panel with Intercom
Connection Utility Page
The options on the Connection Utility page allows the panel to be used as a site survey tool. While in this
page, move around the wireless network coverage area to check for any weak points within the spaces
between the WAPs (FIG. 55).
Features on this page include:

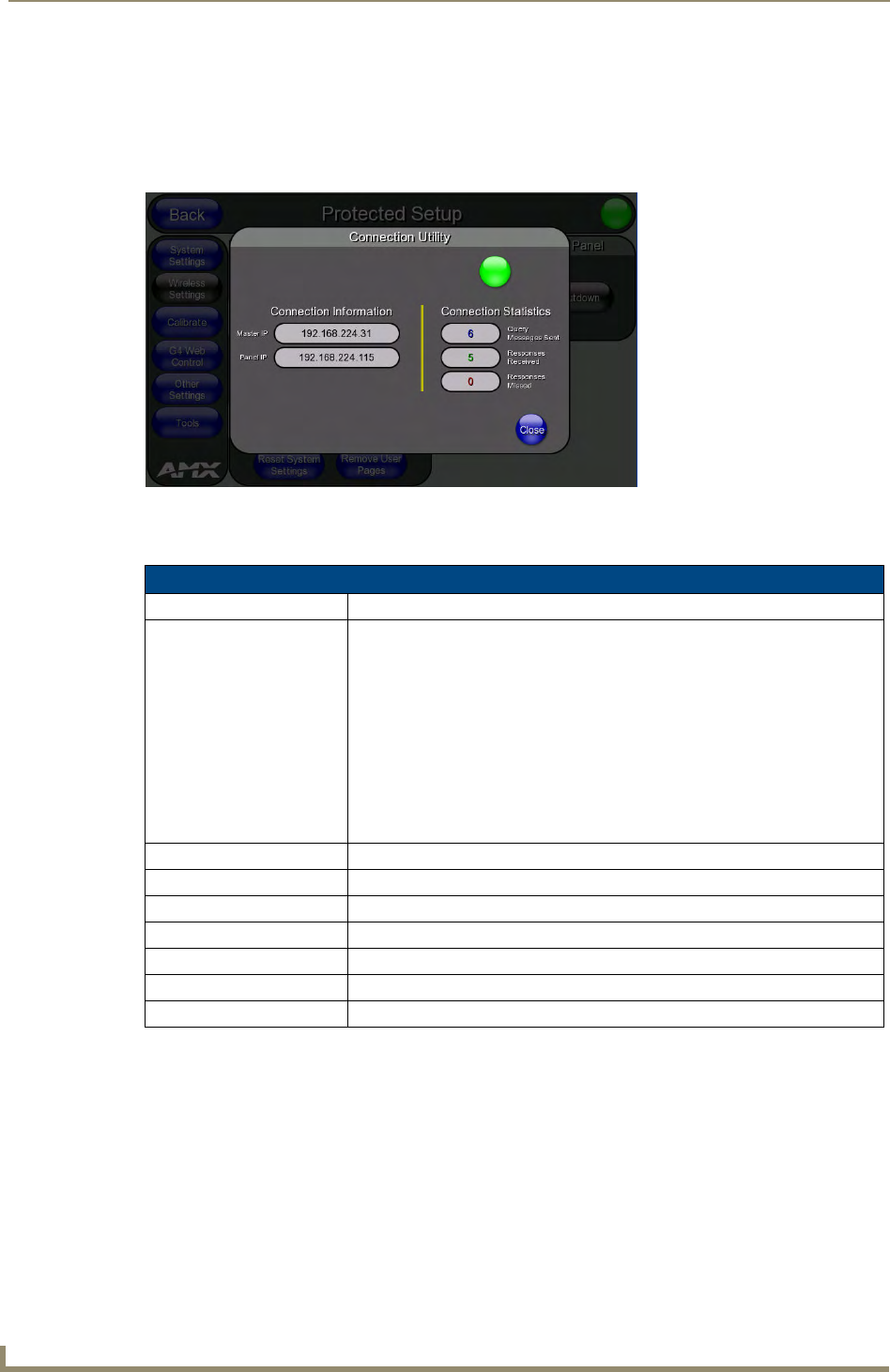

FIG. 55 Connection Utility page
Connection Utility Page
Close: Closes the Connection Utility popup.
Connection Status icon: The icon in the upper-right corner of the utility provides a constant visual i
indication of current connection status.
A message is sent to the master once per second and expects a response.
• If it is received, the button stays green.
• If it is missed, the button goes yellow.
• After three misses (3 seconds), it will go red until a response from the master
is received, and then it will be green again.
Once per second, a user can know if the immediate area is a good wireless
area (all green), an area of limited coverage (lots of yellow, some green, some
red), or an area with no coverage (all red).
Connection Information
Master IP The IP Address for the connected master.
Panel IP The IP Address for the panel.
Connection Statistics
Messages Sent The number of messages sent from the panel to the master.
Responses Received The number of responses the panel has received from the master.
Responses Missed The number of expected responses from the master to the panel missed.
