38 VESA Mount
5
Lift the VESA mount away from the chassis.
Replacing the VESA Mount
1
Follow the instructions in "Before You Begin" on page 11.
2
Align the screw holes on the VESA mount with the screw holes on the
chassis and place the VESA mount on the chassis.
3
Replace the six screws that secure the VESA mount to the chassis.
4
Replace the rear-stand assembly. See "Replacing the Rear-Stand Assembly"
on page 36.
5
Replace the back cover. See "Replacing the Back Cover" on page 21.
CAUTION: Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.
6
Connect your computer and all attached devices to electrical outlets, and
turn them on.

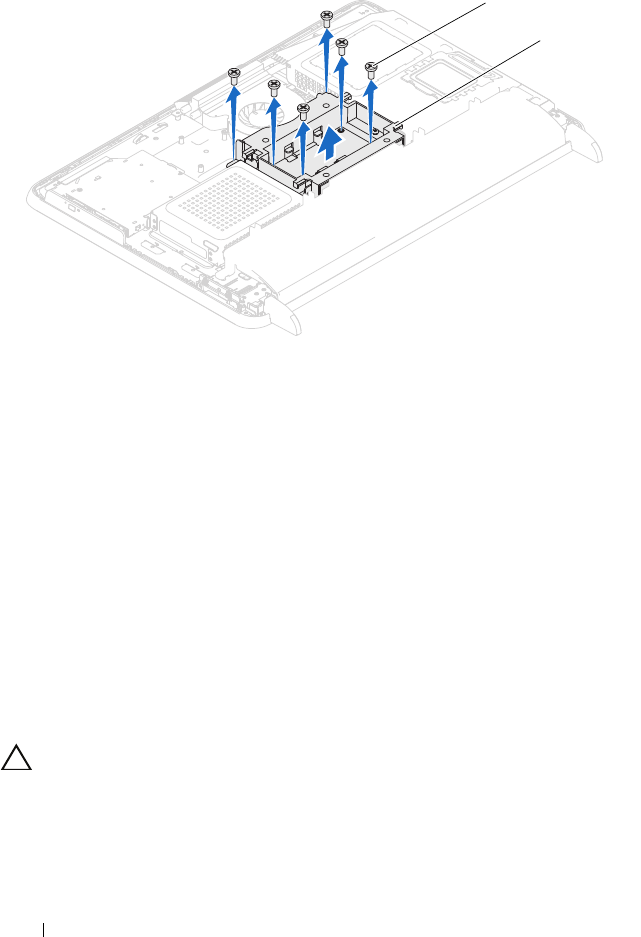

1 screws (6) 2 VESA mount
1
2
