7-22 Advanced Features
MA4000 Installation Manager User Guide - Revision 6

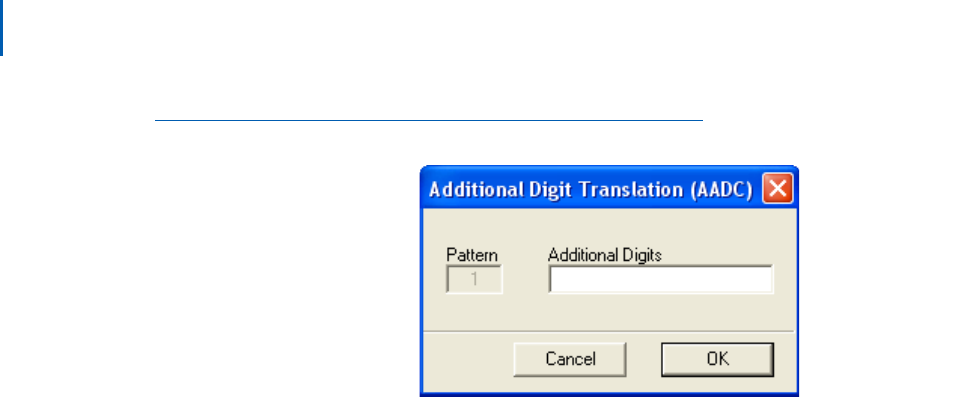

Figure 7-19
Additional Digit Translation (AADC)
Step 11 Enter the additional digits and select the OK button.
Step 12 Select the Priority Restriction Class.
Step 13 Use the Kind of Trunk field to specify whether the trunk is IP or non-IP.
Step 14 If IP was selected, use the Point of Code field to set the point code.
Step 15 The configured route now appears on the list. It can be moved up or
down, which determines the sequence in which the calls attempt to find a
trunk. For example, a call matches the LCR pattern, then attempts
completion using the first trunk listed. If that is full, it then goes to the next
trunk and so forth. Each choice is less desirable than the preceding one.
Step 16 Use the Toll Code Identification field to specify whether the call should
be identified as a toll call or local call.
Step 17 Use the Account Number field to specify whether an account number is
necessary to access the selected trunk in the LCR.
Step 18 Use the Line Data field to specify whether the line data is digital or
analog.
