13-4 Productivity Features
MA4000 Installation Manager User Guide - Revision 6
UC Suite - MA4000 Manager
Step 1 Select Tools → Configuration → UC Suite — MA4000 Manager, then
click the Run button. Figure 13-2 displays.

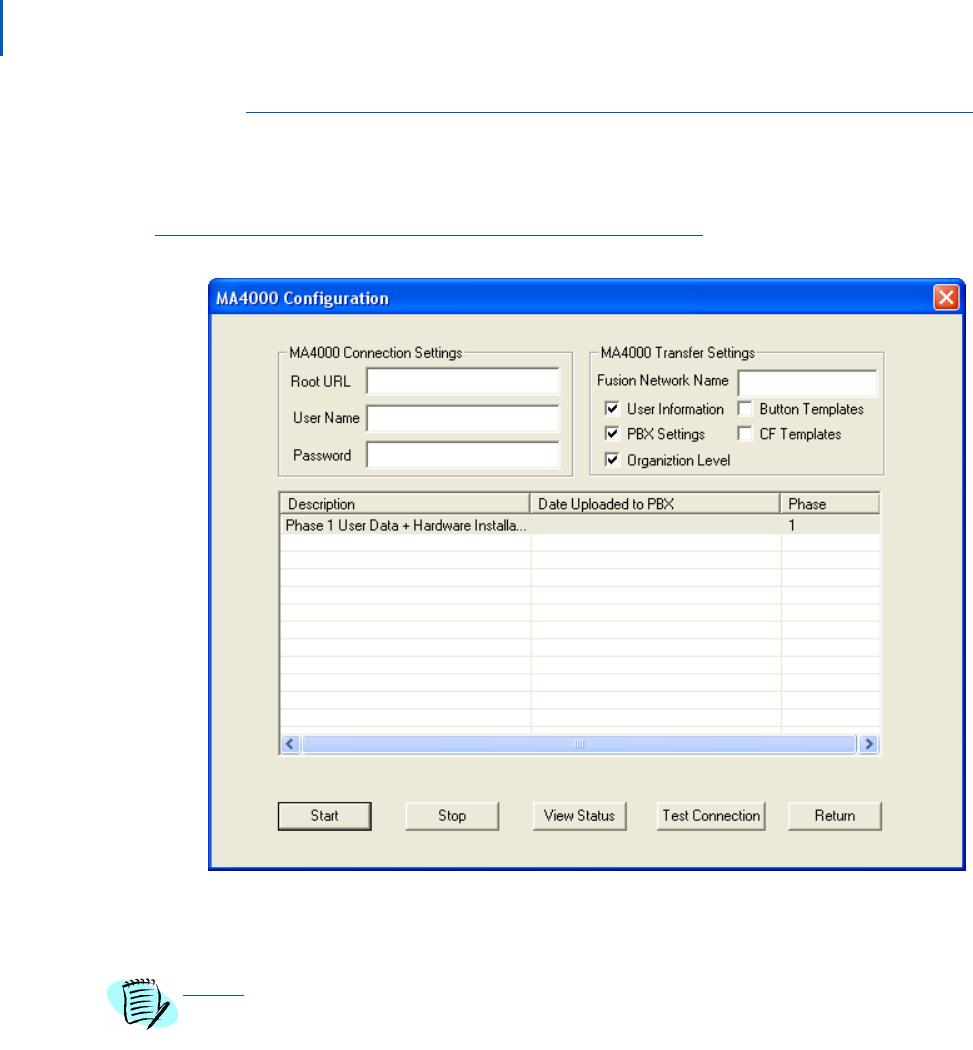

Figure 13-2
UC Suite - MA4000 Manager
\
Step 2 Enter the MA4000 connection and transfer settings described in
Table 13-1.
The server information entered in this section are added to the database and used
when data is transferred to the MA4000.
—Click Start to load the Installation Manager data to a MA4000.
—Click St
op to end the data uploading process to the MA4000 before
the transfer finishes.
—Click Vi
ew Status to display a dialog showing detailed progress
information about the current transfer. See Figure 13-3.
—Click Return to re
turn to the Tool’s Configuration tab.
—Click T
est Connection to ensure the MA4000 connection settings (for
example, Root URL, etc.) are correct and MA4000 is running properly.
—Click Return to
close the MA4000 Configuration dialog. This selection
does not stop a current upload in progress.
NOTE
