If you are configuring a trunk card refer to the following descriptions:
• Name - Device name
• D
efault Gateway Address - IP address of your network’s gateway router
• DRS A
ddress - IP address of the Device Registration Server
• IP
Address - Device IP address. Each media gateway must have a separate IP address
• Network Mask - Device IP network mask
10-4 Circuit Card Assignments
MA4000 Installation Manager User Guide - Revision 6
Step 12 Click Zoom Out to return to the large-scale system view.
Step 13 (Optional) Repeat Steps 5-12 for any additional circuit cards you wish to
assign.
The Chassis LEN numbers (see Figure 10-4) are based on the
information provided by the user when the “Create Project Wizard” on
page 3-7 is performed. Specifically, the number of ports selected in the
System Maximum Capacity field (see Figure 3-10, “Create Project
Wizard - Project Name and Type - NEAX IPX and NEAX IPX DM” on page
3-7).

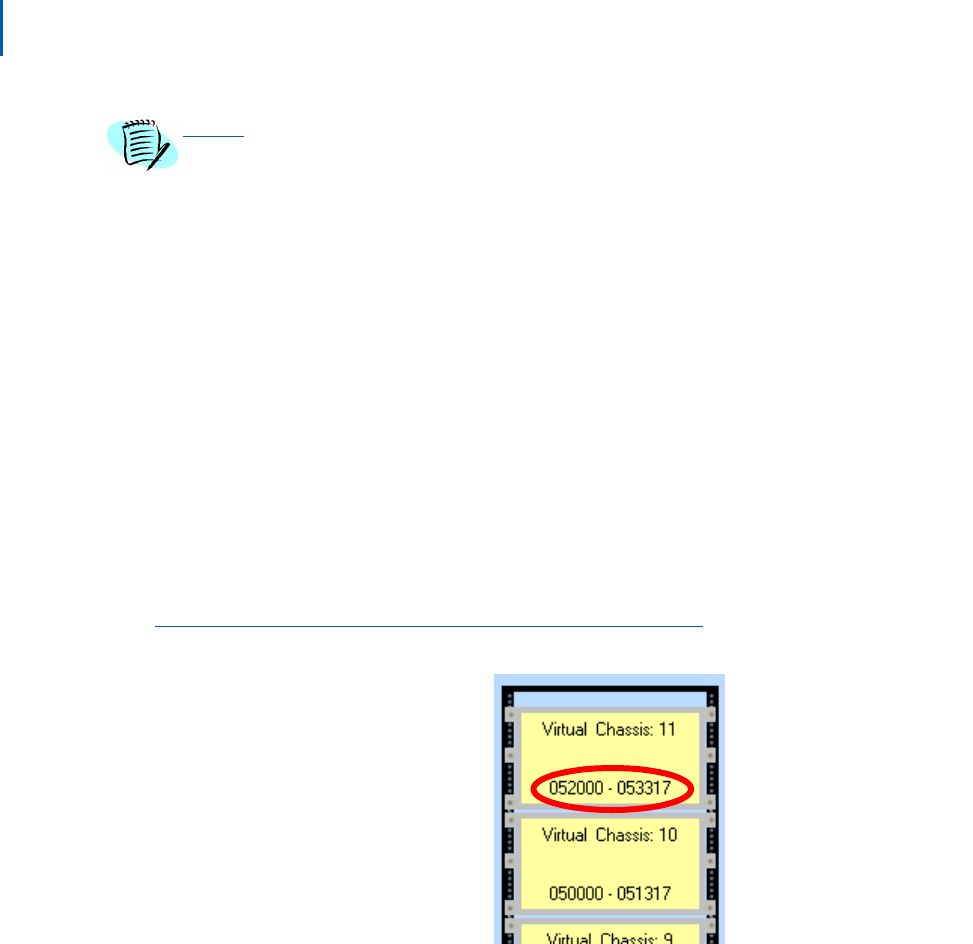

Figure 10-4
Chassis LEN Number
•Zoom In button
When the Zo
om In button is clicked, Figure 10-5 displays.
NOTE
