13-24 Productivity Features
MA4000 Installation Manager User Guide - Revision 6
Location Diversity - AFCMN Tab
Assignment of FCCS Location Diversity Miscellaneous Data for NDM
Installation Manager Location Diversity allows users to assign FCCS
Location Diversity Miscellaneous data for NDM. There are three types of
default data set in this command.
Step 1 Click the AFCMN tab. Figure 13-16 displays.

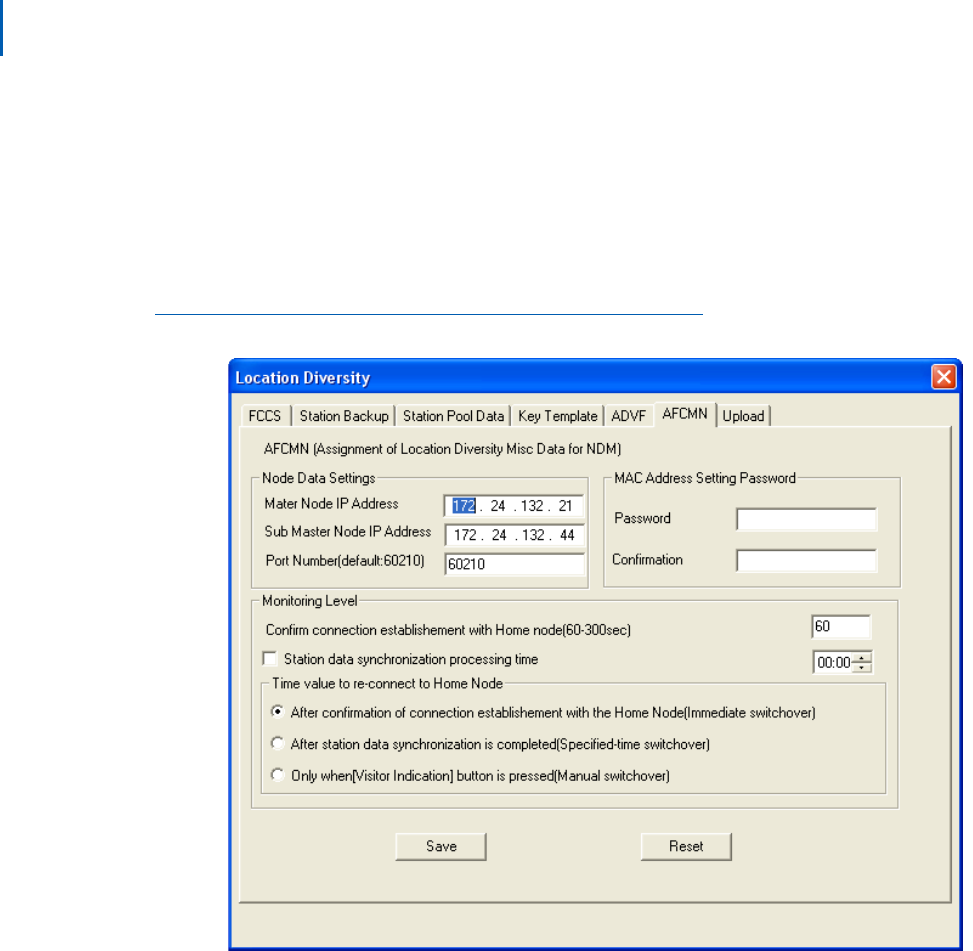

Figure 13-16
Location Diversity - AFCMN Tab
Step 2 In the Node Data Settings pane, use the appropriate text field to enter
values for the following items:
—Master Node IP Address
—Sub Master Node IP Address
—Port Number (default port is 60210)
Step 3 In the MAC Address Setting Password pane, enter your password in
the appropriate field, then enter it again to confirm it.
Step 4 In the Monitoring Level pane, enter a value between 60-300 seconds to
specify how long a backup station waits before attempting to re-establish
a connection to its original PBX.
Step 5 (Optional) In the Monitoring Level pane, use the check box to specify
whether you wish to specify a station data synchronization processing
time, then enter a value in the related text field.
