Install 11-5
MA4000 Installation Manager User Guide - Revision 6

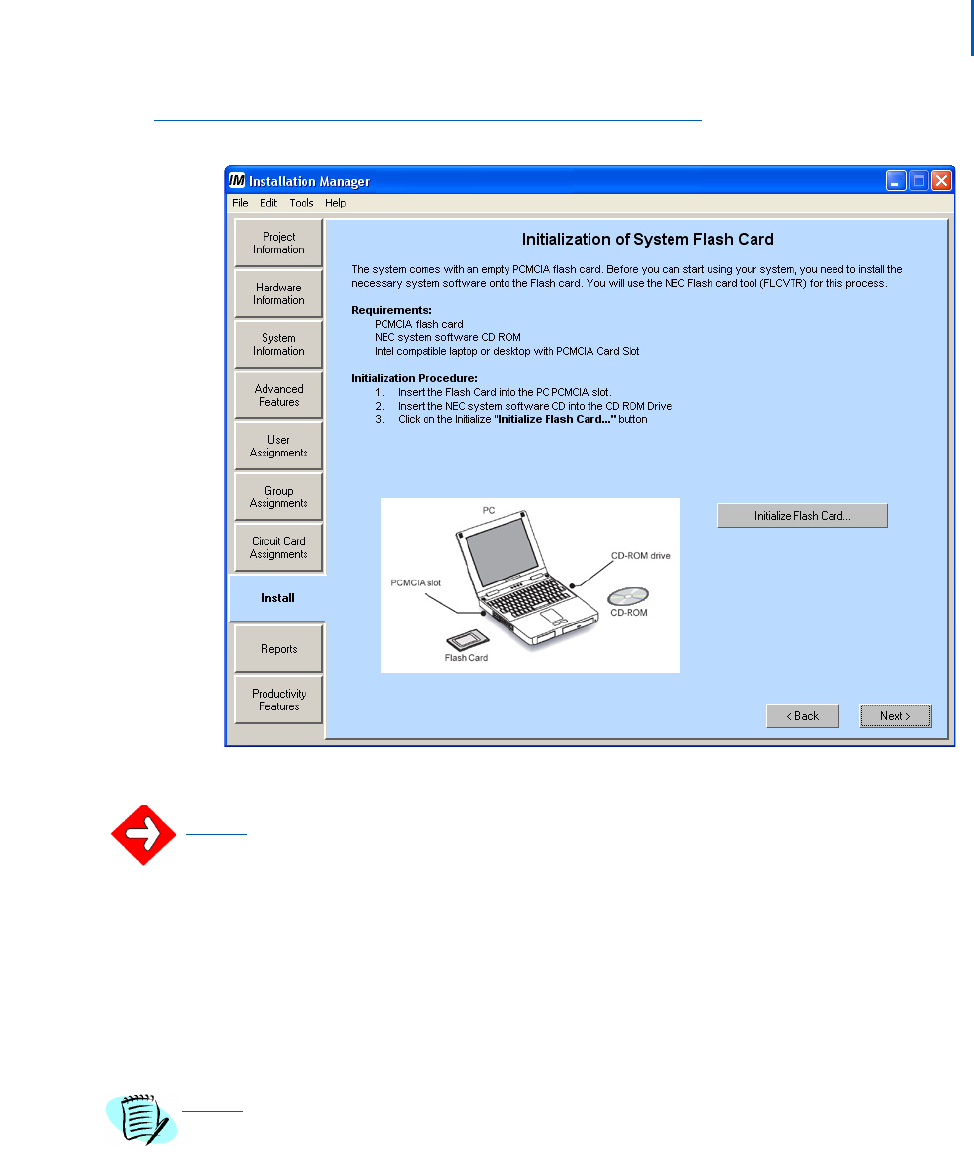

Figure 11-6
Initialization of System Flash Card
Step 7 To initialize a System Flash Card:
—Insert the Flash Card into the PC PCMCIA slot.
—Insert the SV7000 software CD
into the CD-ROM drive.
—Click the Initializ
e Flash Card ... button.
—When complete exit the program. Figure 3-30 and Figure 11-7 or
Figure 11-8 displays.
When Figure 3-30 displays, perform the steps necessary to proceed with SV7000
installation.
IMPORTANT
The flash card installation needs to be installed using the MPS System CD-ROM.
NOTE
