Installing the BayStack 450 Switch
302401-D Rev 00
2-9
Connecting Fiber Optic Ports

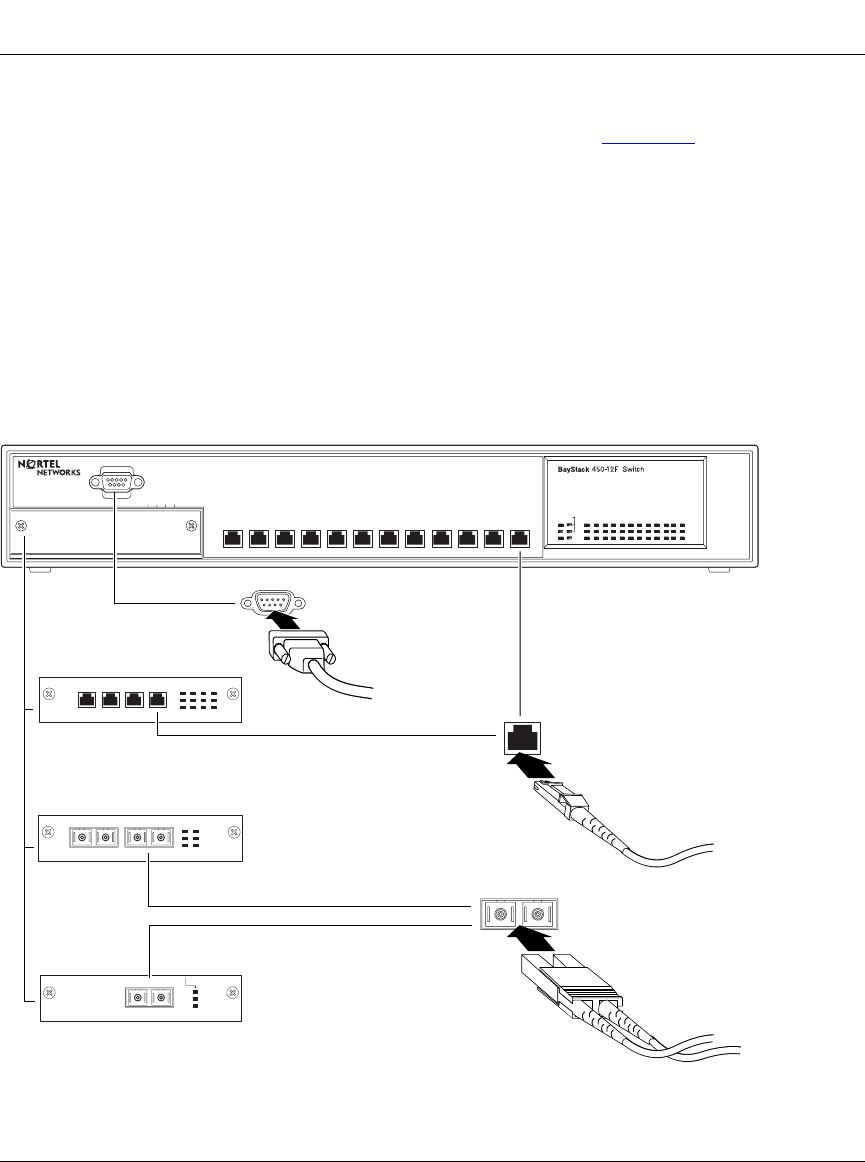

Connect devices to the fiber optic ports as shown in Figure 2-6
.
The BayStack 450-12F switch and the (optional) 400-4FX MDA are
100BASE-FX devices. Both products use MT-RJ port connectors with 62.5/125
micron multimode fiber optic cable. The 400-2FX MDA is also a 100BASE-FX
device but uses standard SC port connectors with 62.5/125 micron multimode
fiber optic cable.
The 1000BASE-X MDAs (the 450-1SR/SX and the 450-1-LR/LX) use standard
SC port connection but special consideration is required for 1000BASE-LX
connections (see “1000BASE-LX Multimode Applications on page C-13).
