INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-4
1004.9
[39.6]
47.0
[1.9]
970.0
[38.2]
DIMENSIONS ARE IN MILLIMETERS [INCHES]
TOP VIEW
318.0
(12.5)
274.5
(10.8)
52.9
(2.1)
369.0
(14.5)
738.0
(29.0)
198.5
(7.8)
CONDUIT ENTRY AREA FOR CONTROL
WIRE CONNECTIONS. AC INPUT AND
DC INPUT (REMOVE PANEL TO DRILL OR
PUNCH CONDUIT HOLES.)
CUSTOMER INTERFACE PANEL ACCESS
1/2 KNOCKOUT FOR CUSTOMER
INTERFACE PANEL CONDUIT
REMOVE DEBRIS SHIELD COVERING
EXHAUST GRILL BEFORE OPERATING
SYSTEM. (SHIELD NOT SHOWN FOR
CLARITY).
LEFT VIEW
DOORS

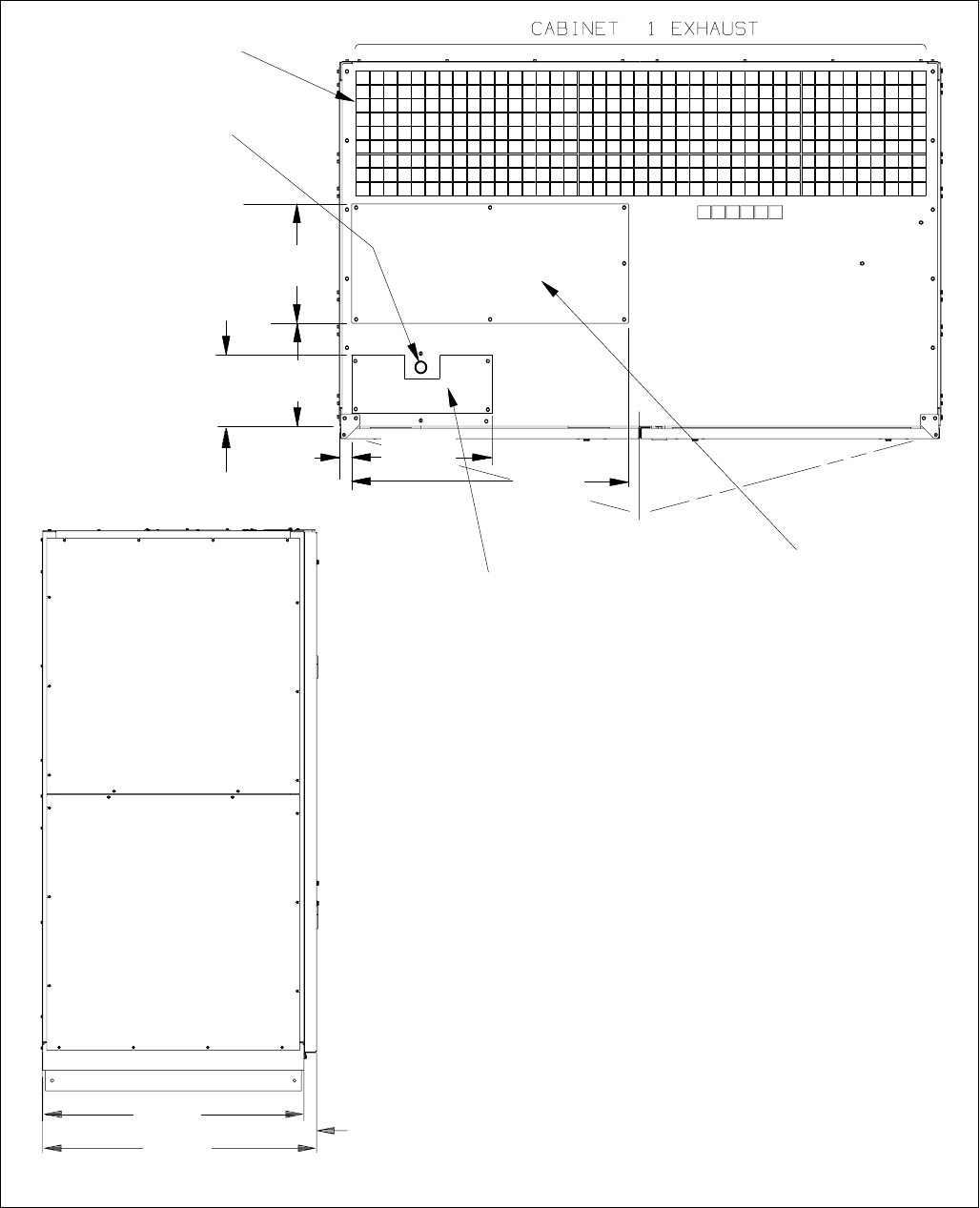

Figure A‐3. Inverter/Rectifier Cabinet – PCM 1 Dimensions (continued)
