INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-27
AC INPUT FROM
INVERTER CABINET
AC OUTPUT
TO LOAD
AC INPUT
TO BYPASS

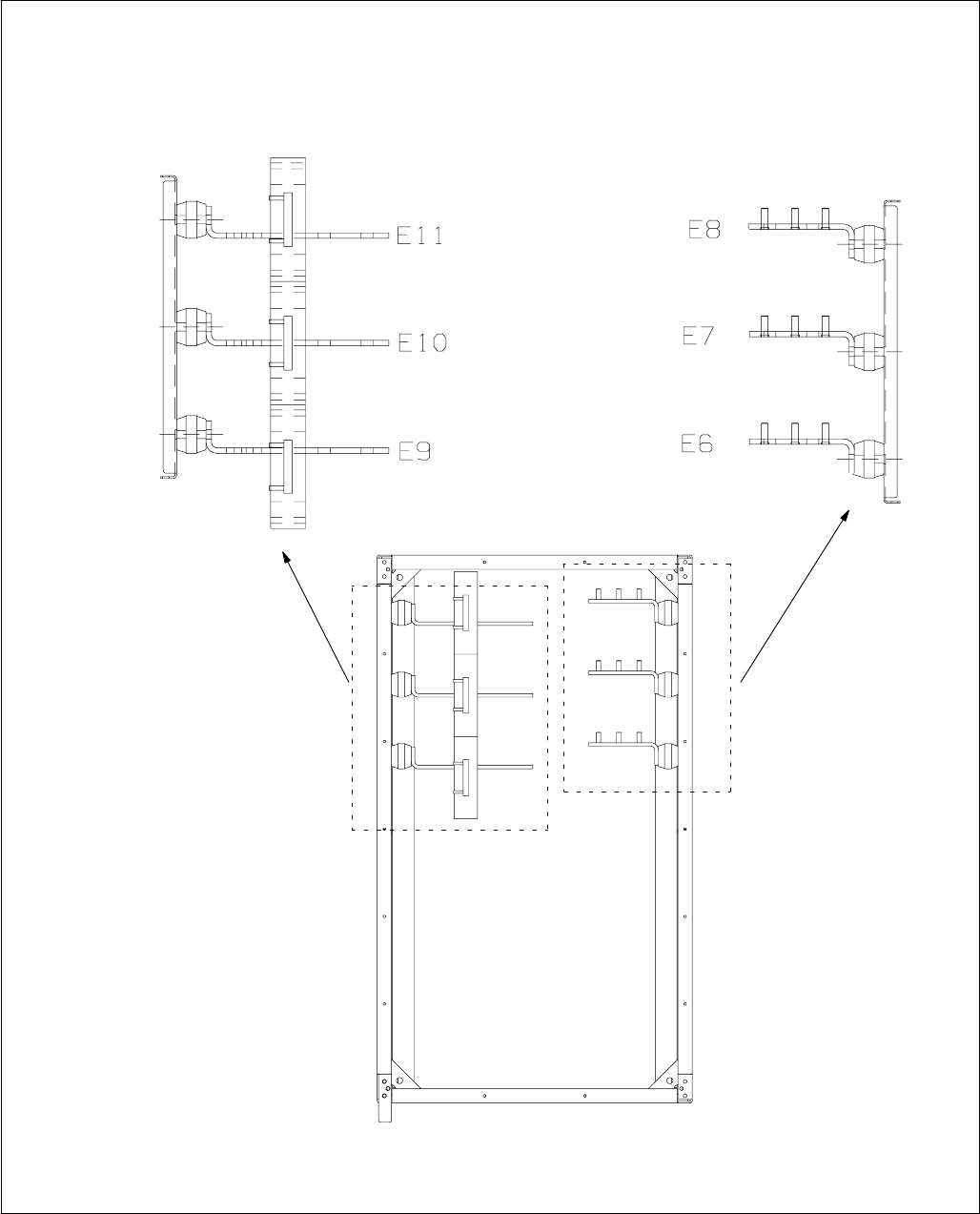

TOP VIEW
MBC – TOP AND BUS BARS
Figure A‐17. MBC – PCM 3 Terminals (continued)
