INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-24
15 PIN INTERCABINET
CONNECTION ON
PIGTAIL HARNESS
TO INPUT/ RECTIFIER
CABINET
NEGATIVE DC INPUT
FROM RECTIFIER DC LINK
(SEE FIGURE A‐15)
AC OUTPUT
TO MBC OR SBM
(E9, E10, E11)
OUTPUT
NEUTRAL
CONNECTION (E12)
GROUND
OUTPUT BREAKER
CB3 (OPTIONAL)
CUSTOMER INTERFACE
BUILDING ALARM AND RELAY
CONTROL 1 AND 2
(USED FOR SBM WIRING ONLY)
POSITIVE DC INPUT
FROM RECTIFIER DC LINK
(SEE FIGURE A‐15)
15 PIN INTERCABINET
CONNECTION ON PIGTAIL
HARNESS TO MBC
CUSTOMER INTERFACE
TERMINAL BOARD (CUSTTB)
CUSTOMER INTERFACE
CAN A
CAN B
FRONT VIEW
NOTE Metal shield covering power wiring terminals and battery compartment must be
removed to gain access to wiring terminals.

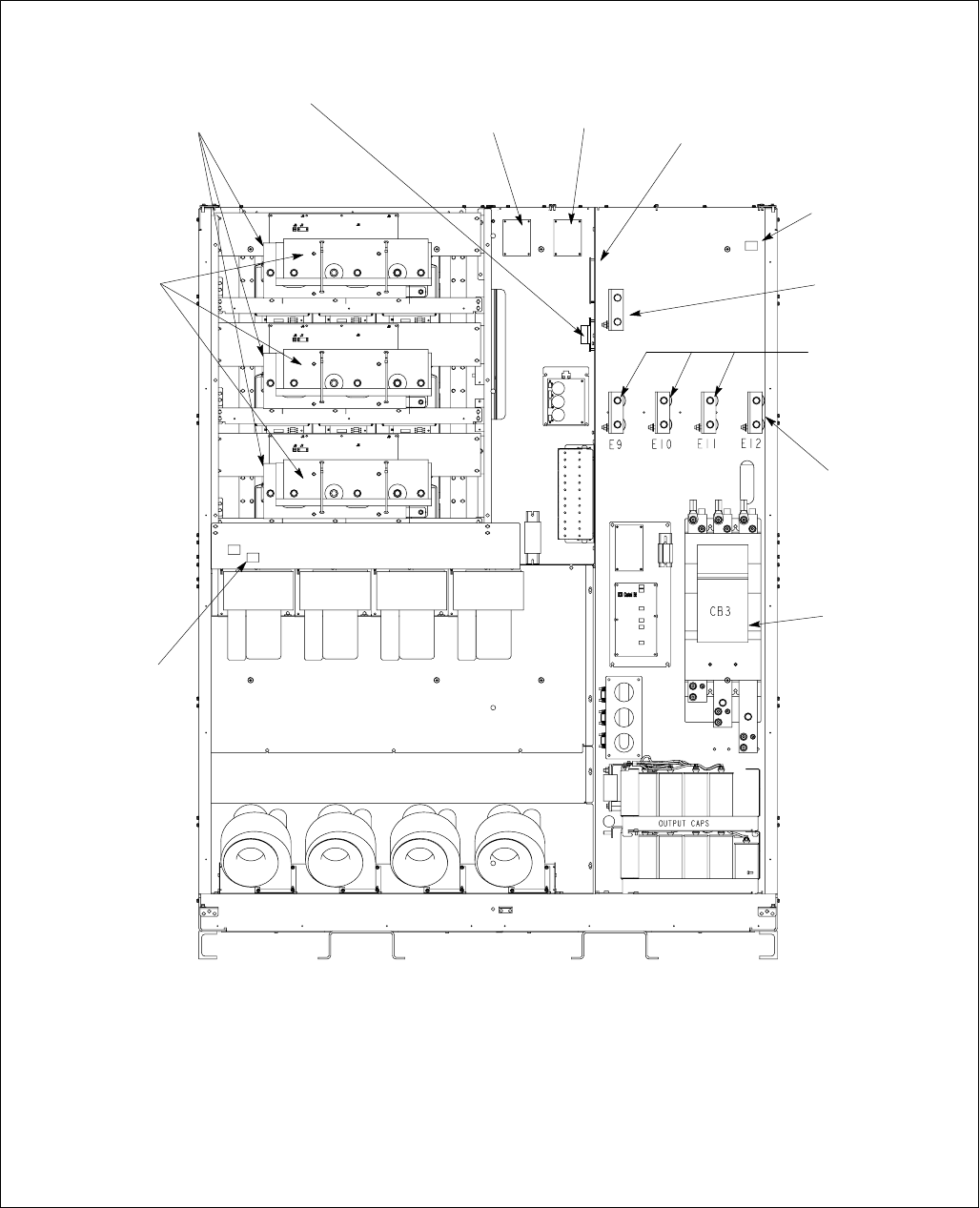

Figure A‐14. Output/Inverter Cabinet – PCM 2 Terminals
