INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-42

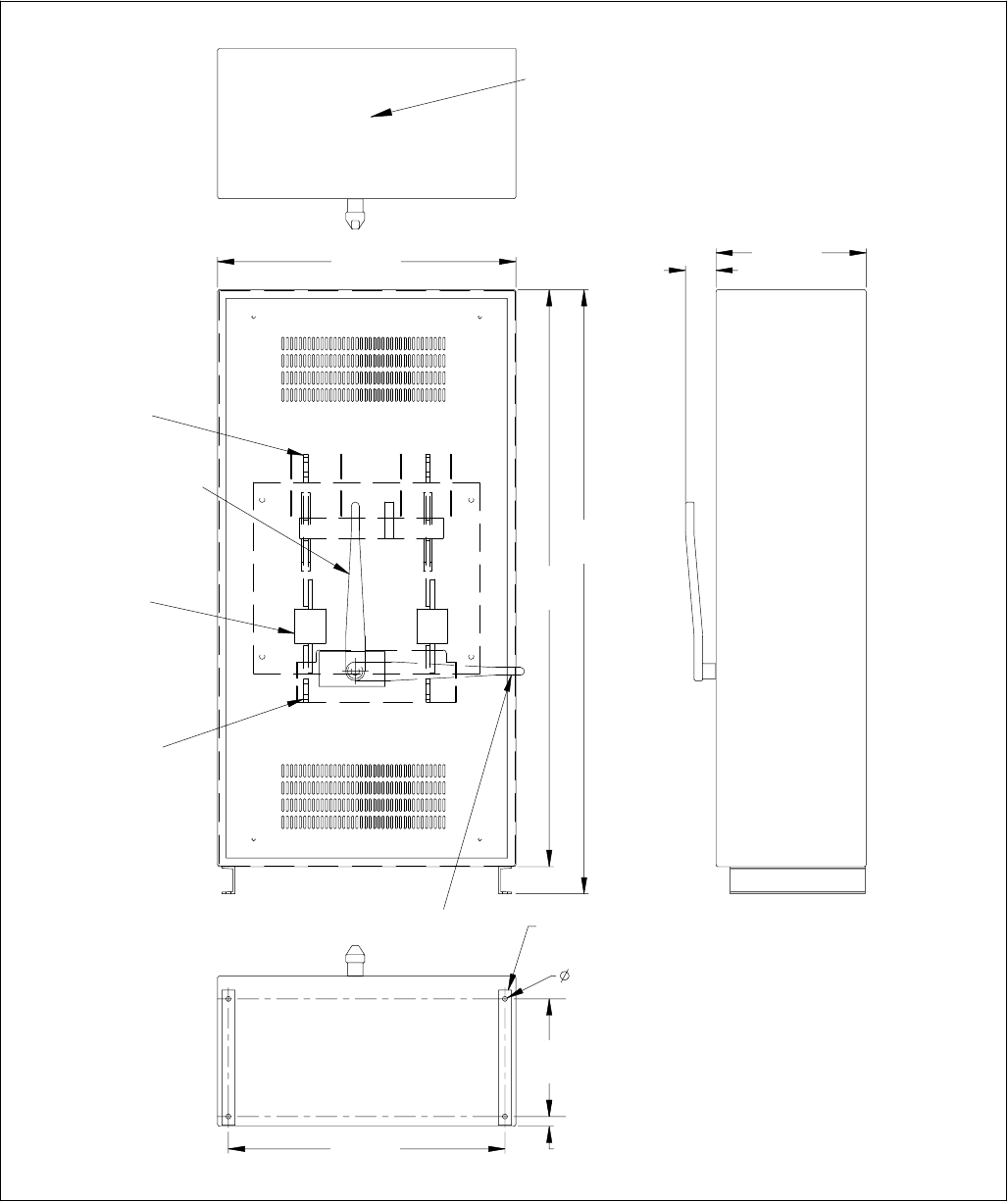

A.10 Battery Disconnect Switch Dimensions
DIMENSIONS ARE IN MILLIMETERS [INCHES]
806.5
[31.75]
870.0
[34.25]
88.9
[3.50]
438.15
[17.25]
REMOVABLE FEET (IF WALL MOUNTED)
LINE SIDE
TERMINATION
14.3 MTG
[0.56]
1762.1
[69.37]
1682.8
[66.25]
342.95
[13.5]
OPERATING HANDLE
“OFF” POSITION
OPERATING HANDLE
“ON” POSITION
PROVISION FOR
2 FUSES
LOAD SIDE
TERMINATION
AVAILABLE CONDUIT AREA
FOR TOP ENTRY
Figure A‐30. Battery Disconnect Switch Dimensions
