INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-22
A.4 Location of UPS Terminals
NOTE Metal shield covering power wiring terminals and battery compartment must be
removed to gain access to wiring terminals.
DC INPUT FROM BATTERY
TO UPS
(E4, E5)
AC INPUT TO UPS RECTIFIER
(E1, E2, E3)
(A, B, C)
15 PIN INTERCABINET
CONNECTION ON
PIGTAIL HARNESS
TO OUTPUT/
INVERTER
RECTIFIER DC LINK
OUTPUT TO INVERTER
CUSTOMER INTERFACE
BATTERY I/O BOARD
INPUT BREAKER CB1
CUSTOMER
INTERFACE
TERMINAL
BOARD (CB2TB)
FRONT VIEW

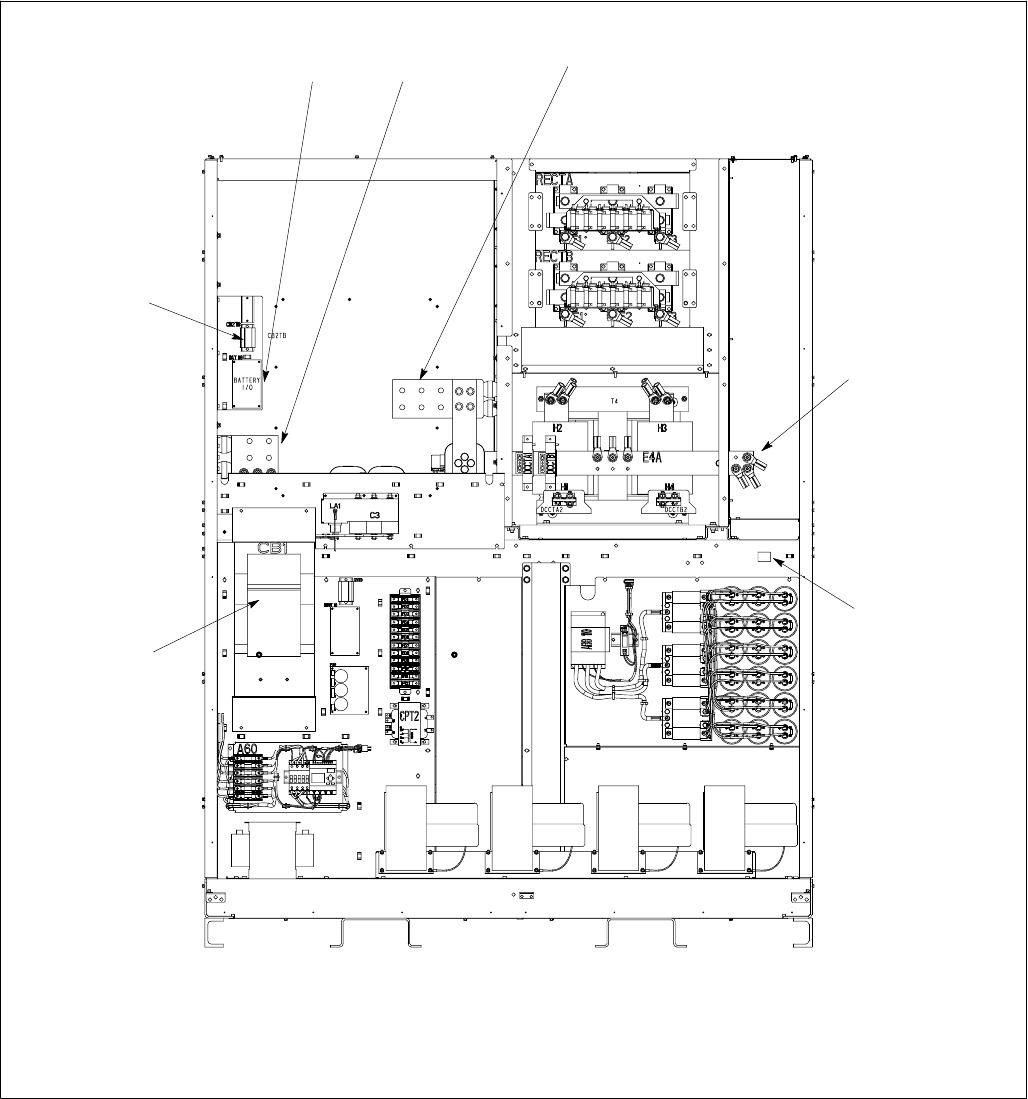

Figure A‐12. Inverter/Rectifier Cabinet – PCM 1 Terminals
