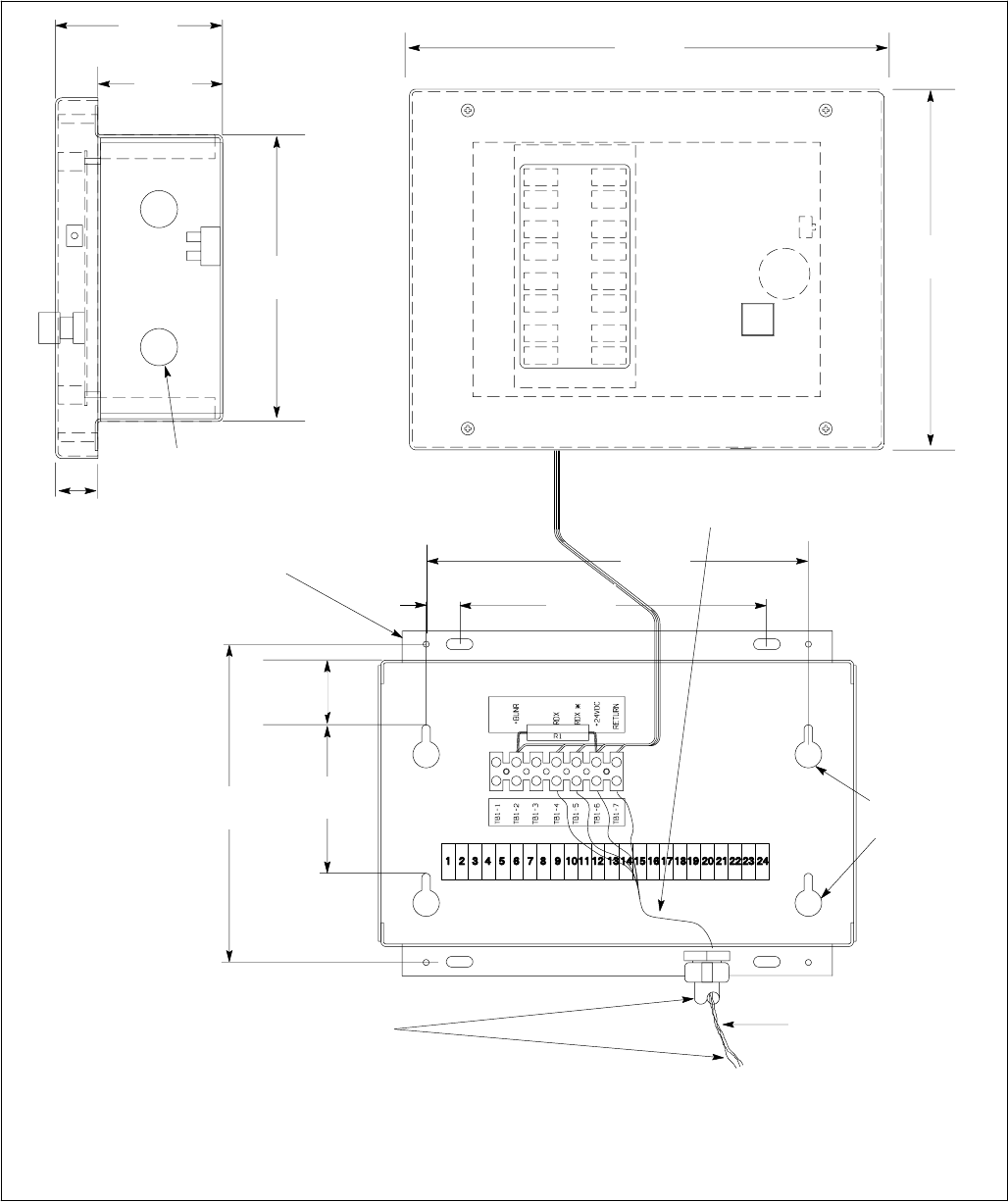

A.9 SCM Dimensions and Mounting Details
41.1
DIMENSIONS ARE IN MILLIMETERS [INCHES]
100.1
[3.94]
74.7
[2.94]
171.5
[6.75]
25.4
[1.00]
KNOCKOUTS PROVIDED ON
5 SURFACES
285.7
[11.25]
215.9
[8.50]
216.58
[8.50]
197.47
[7.75]
41.1
[1.62]
88.9
[3.50]
190.5
[7.50]
MAX. WIRE SIZE: NO. 14 AWG
MAX. WIRE SIZE: NO. 18 AWG
SURFACE MOUNT
(FOR HANGING)
WIRES MUST BE
TWISTED (14–18 AWG)
CONDUIT AND WIRING SUPPLIED BY CUSTOMER.
MAX. DISTANCE BETWEEN SCM AND UPS NOT TO
EXCEED 500 FT.
19.0
[0.75]
FLUSH MOUNT
Figure A‐29. SCM Dimensions and Mounting Details
