INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-35
1
1
10
10
CUSTJ4
CUSTJ2
CB3 AUX #2
CB3 AUX #2*
REPO
CB4 AUX #2
CB4 AUX #2*
REPO COMMON
RELAY #2 NO
RELAY #2 COMMON
RELAY #2 NC
RELAY #1 NO
RELAY #1 COMMON
RELAY #1 NC
BUILDING ALARM #2 RETURN
BUILDING ALARM #2
BUILDING ALARM #3 RETURN
BUILDING ALARM #3
BUILDING ALARM #4 RETURN
BUILDING ALARM #4
BUILDING ALARM #5 RETURN
BUILDING ALARM #5
1
10
MBC I/O BOARD
BUILDING ALARM #1 RETURN
BUILDING ALARM #1

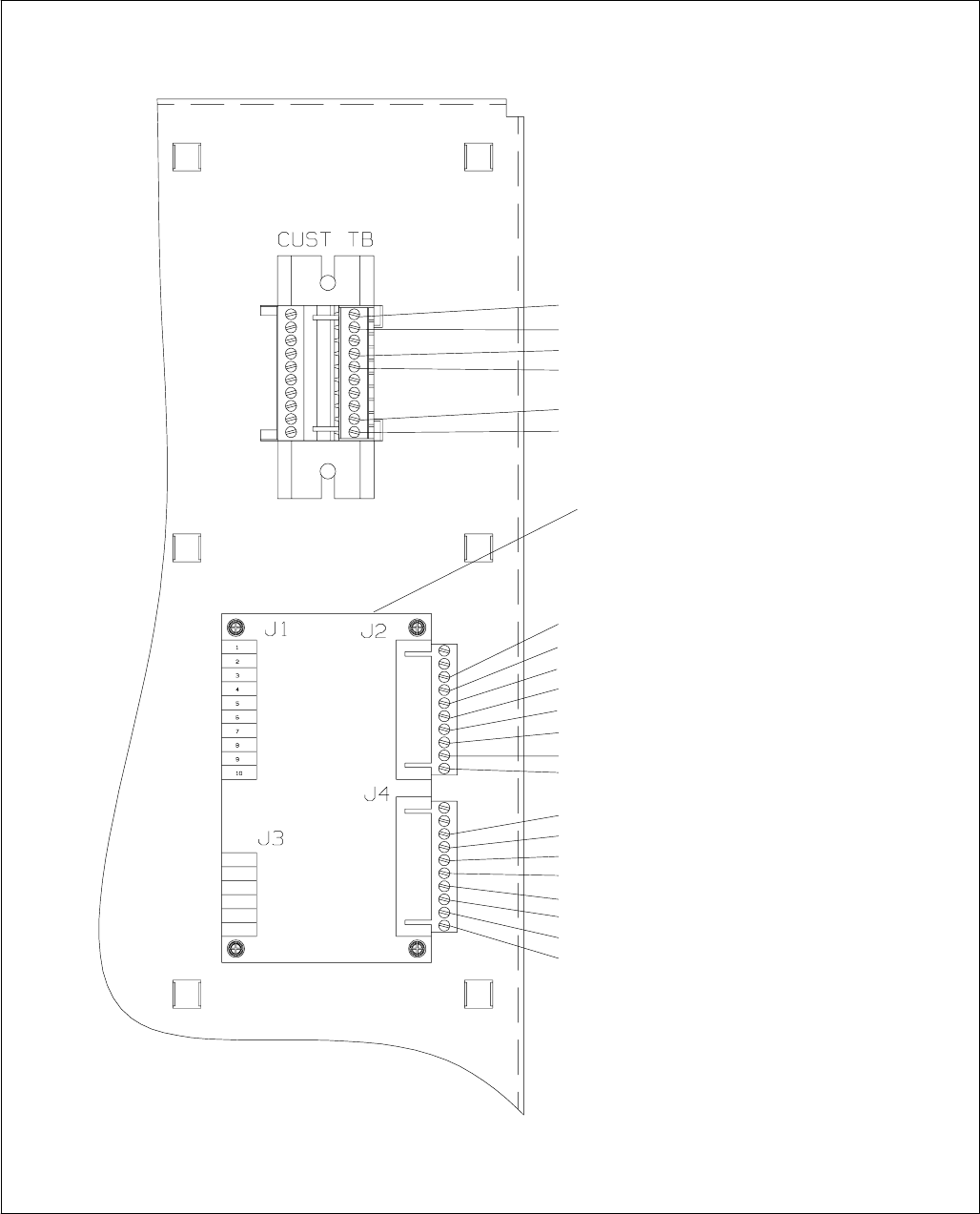

Figure A‐22. MBC – PCM 3 Customer Interface Wiring (Single Module System Only)
