INSTALLATION REFERENCE
EATON Powerware
®
9315 UPS (500–750 kVA) Installation and Operation Manual S 164201244 Rev E www.powerware.com
A-8
DIMENSIONS ARE IN MILLIMETERS [INCHES]
TOP VIEW
LEFT VIEW
970.0
[38.2]
1004.9
[39.6]
33.0
[1.3]
CONDUIT ENTRY AREA FOR CONTROL WIRE
CONNECTIONS, BYPASS INPUT, AND AC OUTPUT TO
CRITICAL LOAD (REMOVE PANEL TO DRILL OR PUNCH
CONDUIT HOLES.)
DOOR

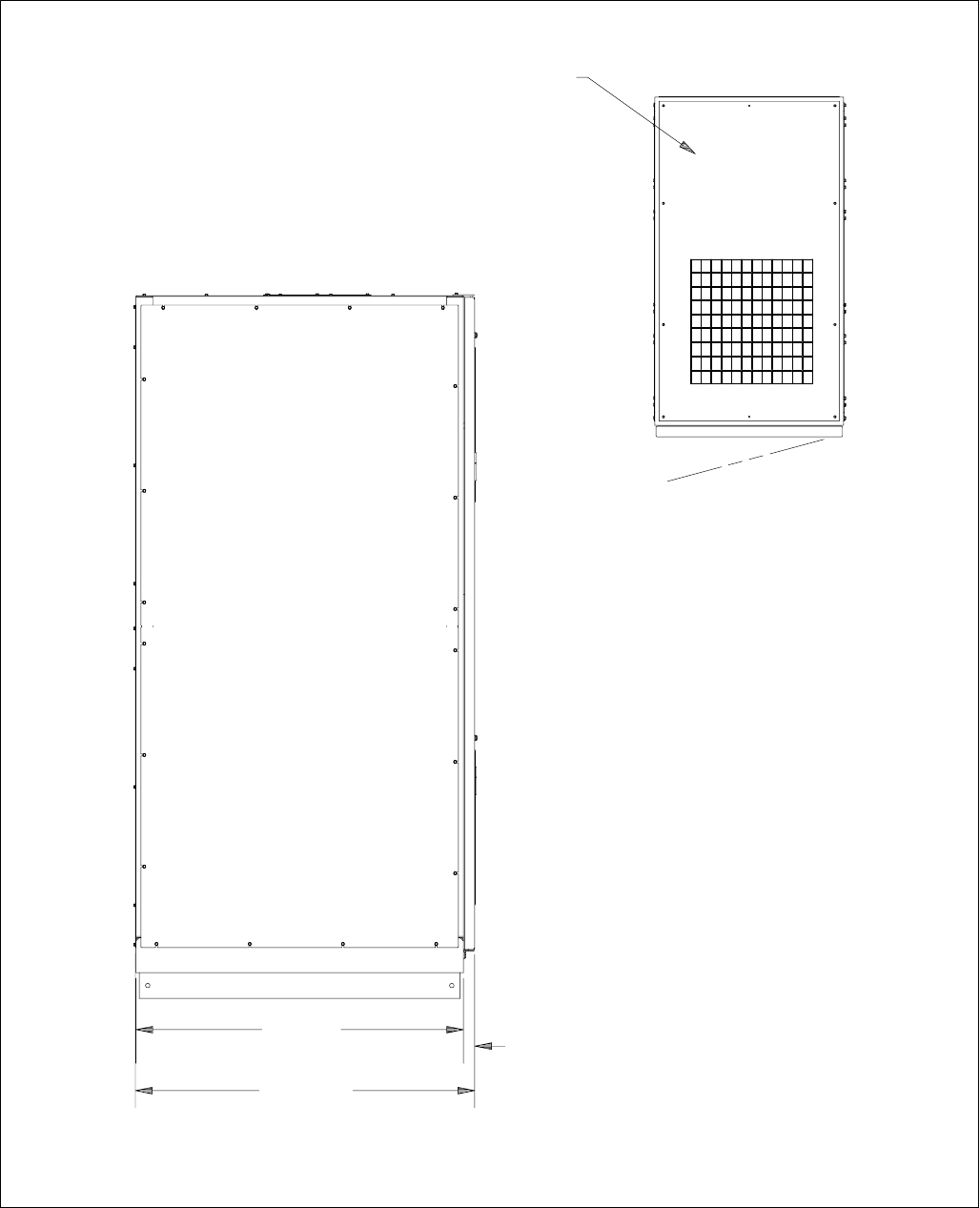

Figure A‐7. MBC – PCM 3 Dimensions (continued)
