Class 8839 Econoflex™ AC Drives
Dimensions and Weights
199
09/2003
© 2000–2003 Schneider Electric All Rights Reserved

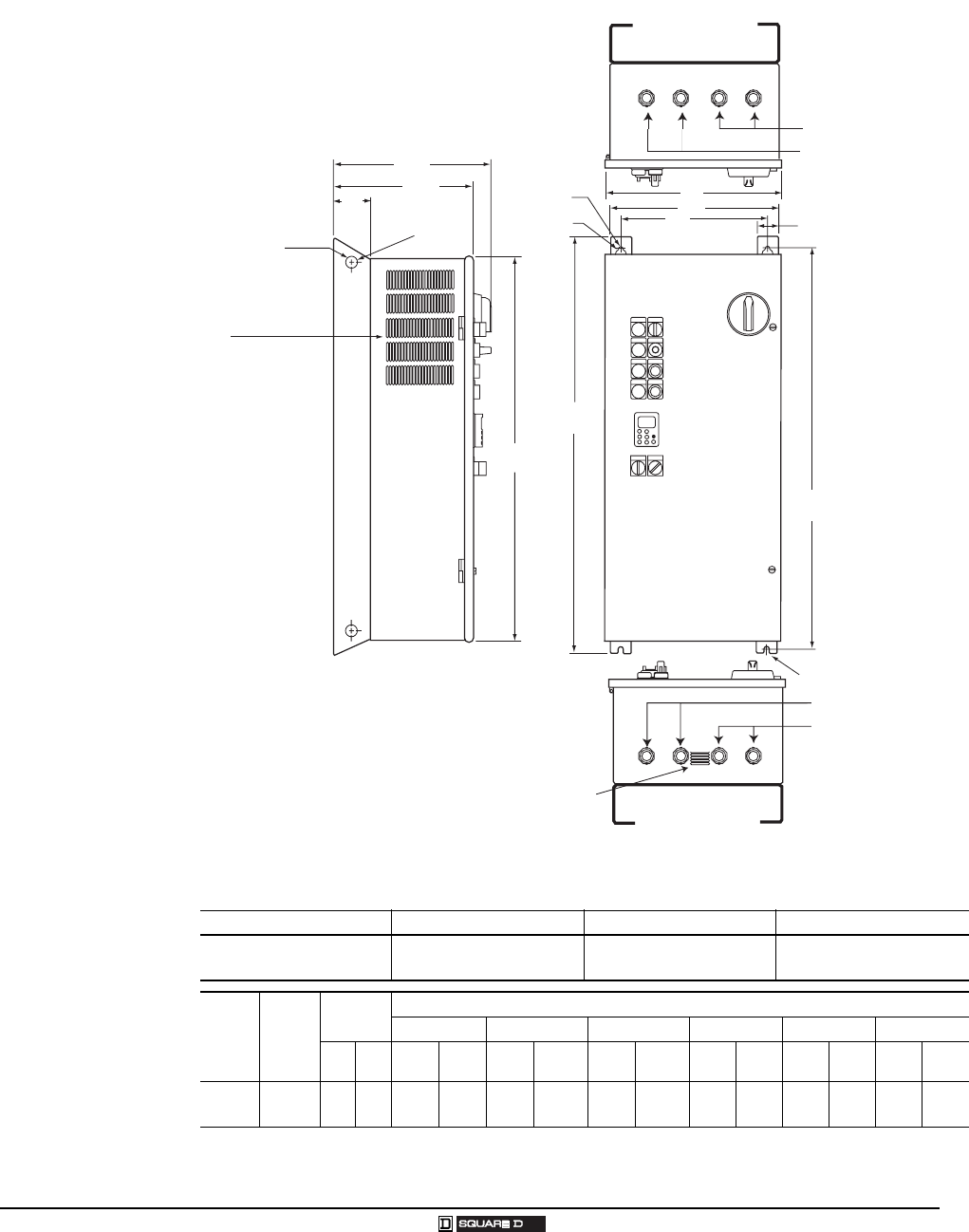

DIMENSIONS AND WEIGHTS FOR TYPE 1 AND TYPE 12K ENCLOSURES
Ø
1.00
(25.40)
Lifting
Hole
B
A
Conduit Entry - Top View
K
L
Ø 0.37
(9.40)
Ø 0.88
(22.35)
D
E
1.85
(47.00)
C
F
Conduit Entry - Bottom View
Vents in Type 1 Only
Vents in Type 1
Only
K
L
Ø 0.37
(9.40)
13.56
(344.22)
12.04
(305.82)
3.25
(82.55)
NOTE: Provide at least 3 in.
(77 mm) of mounting
clearance on each side of
the drive controller and 6 in.
(152 mm) at the top and
bottom of the drive
controller.
Dimensions: in. (mm)
Mounting Information for 1 to 20 HP 460 Vac and 1 to 10 HP 208/230 Vac Controllers
Knockout Dimensions
460 Vac 208/230 Vac K L
1 to 7.5 HP 1 to 5 HP For 1/2" conduit For 1/2" conduit
10 to 20 HP 7.5 to 10 HP For 1/2", 3/4", and 1" conduit For 1/2", 3/4", and 1" conduit
HP HP Weight
Enclosure Dimensions
AB CDEF
460
Vac
208/230
Vac
lb kg in mm in mm in mm in mm in mm in mm
1 to 7.5 1 to 5 87 39.5 32.00 812.8 35.00 889.00 33.75 857.25 14.25 361.95 12.29 312.17 14.76 374.90
10 to 20 7.5 to 10 126 57.2 38.00 965.2 41.0 1041.40 39.75 1009.65 19.49 495.05 17.53 445.26 20.52 521.21
Dim1to20.eps
