Publication No. GEG-99054 Genicom Mar 00
6-2 microLaser 210 User Guide
About the Duplexer
About this Chapter
This chapter provides all of the information necessary to install, use, and maintain the duplexer.
About the Duplexer
The duplexer is a customer-installed optional device that enables automatic printing on both sides
of a sheet of paper. The duplexer is designed to be mounted inside the printer, just below the exit
transport in the paper path. The duplexer drives a single-sided print partially out of the exit trans-
port, then reverses the direction and pulls the printed page back into the printer to print the second
side. The printer can image two pages at a time, therefore the duplex unit will process two pages
(sides 1 and 3) then refeed these pages for sides 2 and 4.
Major Components of the Duplexer
The following figure shows the major components of the duplexer.
Installing the Duplexer
Before you begin the installation procedure, remove the duplexer from its packaging and remove
any shipping tape or cardboard inserts. Verify that you have received the following items:.

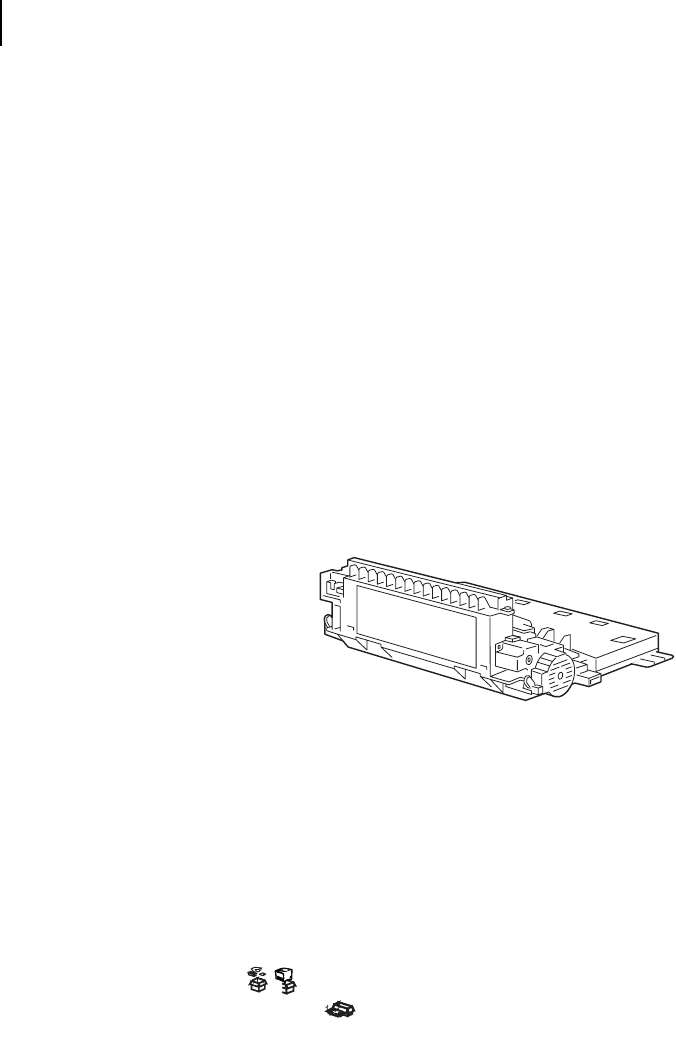

Figure 6-1: Contents of Duplexer Shipping Box.
Use the following procedure to install the duplexer:
