4.11 PC card slot
Removing the PC card slot
The following describes the procedure for removing the PC card slot. (See Figure 4-22)
1. Remove the following screws fixing the PC card slot.
• M2×4Z FLAT BIND screw x2
2. Release the lock of the connector PJ11 on the system board and remove the PC
card slot.

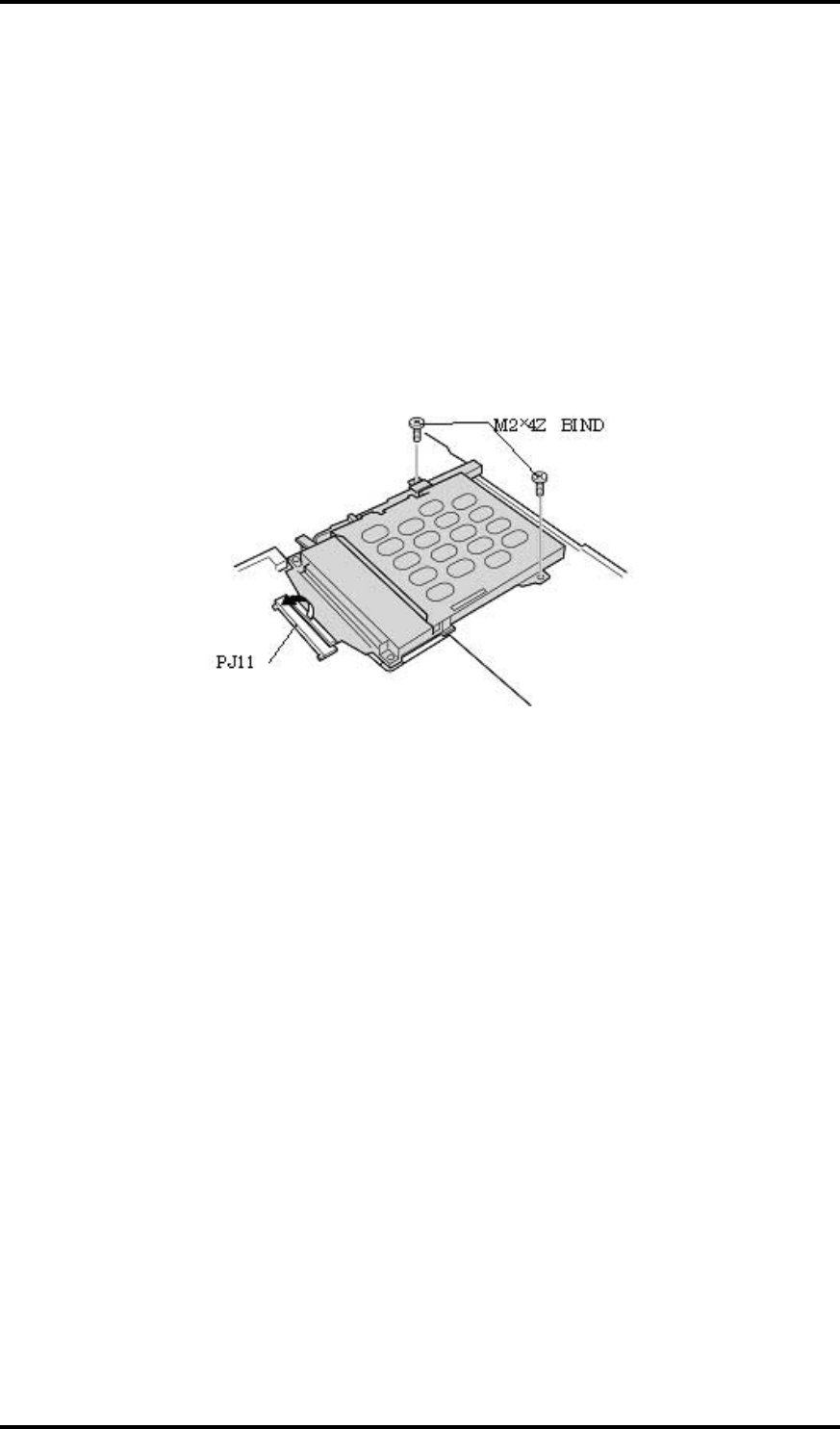

Figure 4-22 Removing the PC card slot
Installing the PC card slot
The following describes the procedure for installing the PC card slot. (See Figure 4-22)
1. Connect the PC card slot to PJ11 on the system board and lock it.
2. Secure the PC card slot with the following screws.
• M2×4Z FLAT BIND screw x2
PORTEGE R100 Maintenance Manual (960-440) 4-31
