6-20 Peripherals/Option Installation Rev.A
Confidential
Interface for the drawer
❏
Specifications
The solenoid 24V(2A at the peak time) pulse by two drawer control (same as supporting the
two drawer to the TM drawer connector at Y cable) FET. Refere to the picture shown in the
table below (from the SR-600 power supply specifications) for the details. 24V output is 2.2A
at peak time. 24V output current is allowed up to two pulse shown below.
Two drawer controls (for example,supporting two drawer at Y cable for TM drawer
connector)is available, but the drawer open status does not distinguish the two drawer
controls at emulation mode.
CAUTION:
It is recommended to use 24
Ω
or above Solenoid for drawer.
❏

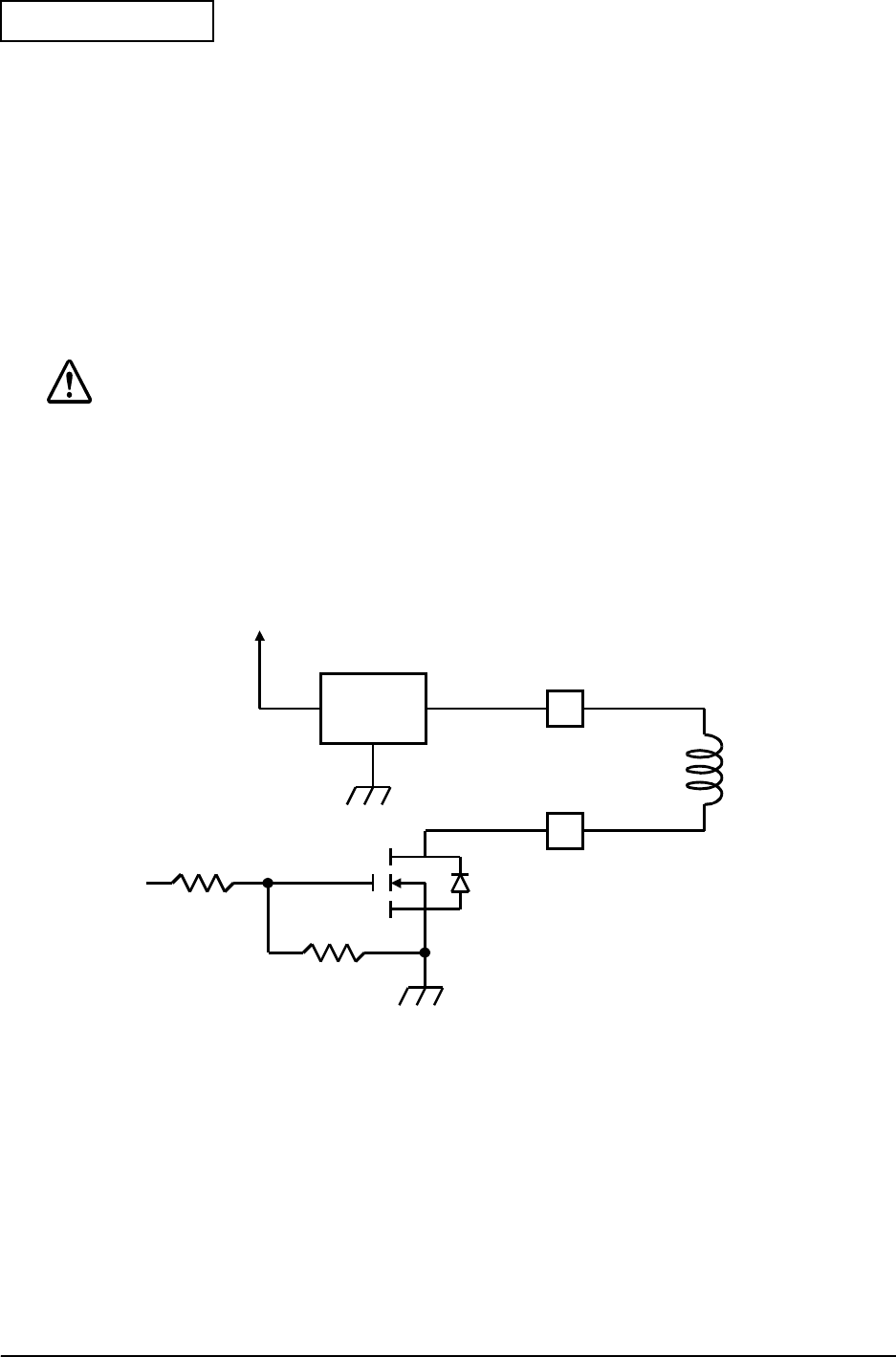

Drawer setting Circuit Description
24V/1A or above electric current is required for the drawer open. FET is used for the booting
since it cannot be started from the CPU port. Refer the table below for the detail.
24V
DKD[1|2]
3 terminal
Solenoid within
drawer
