Thermal/Mechanical Specifications and Design Guidelines 35
Independent Loading Mechanism (ILM)
As indicated in Figure 4-7, the pick and place cover cannot remain in place and used in
conjunction with the ILM Cover. The ILM Cover is designed to interfere and pop off if
the pick and place cover is unintentionally left in place. The ILM cover will also interfere
and pop off if the ILM is closed with a processor in place in the socket.
§

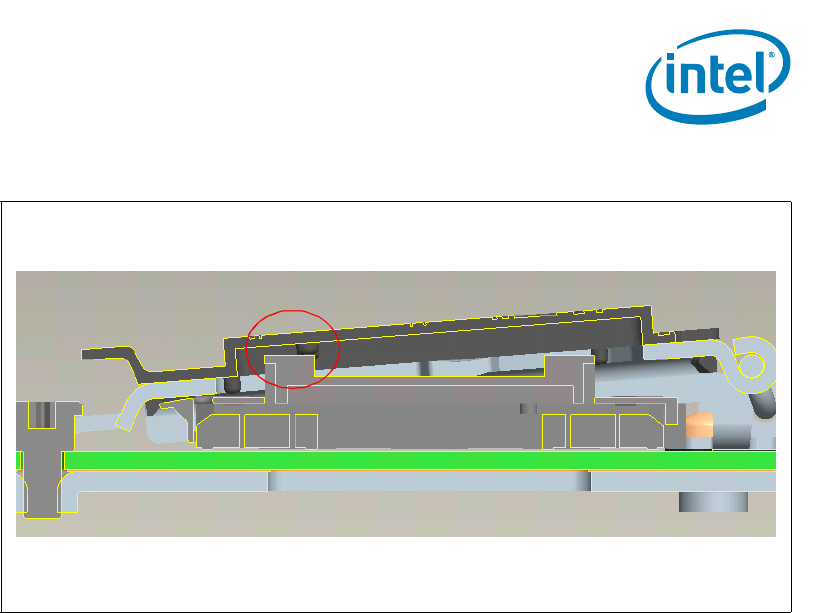

Figure 4-7. ILM Cover and PnP Cover Interference
